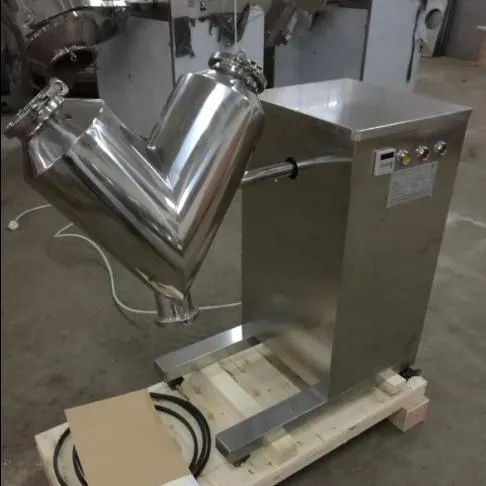

5L, 8L, 10L, 20L, 50L, 100L Laboratory V Shape Dry Powder Mixer Machine for Pilot Production

Product Description

5L, 8L, 10L, 20L, 50L, 100L Laboratory V Shape dry powder Mixer Machine for pilot production
We will send you offer if you can provide us below information:
----What materials do you mix? (Names of raw materials?)
----What is the powder fineness/particle size? (how much mesh, mm, micro?)
----What is the bulk density/specific gravity of mixed materials? (how much kg/m3, g/cc?)
----How many kgs to be mixed per batch?
1, Working principle:
One end of the V shape blender is equipped with motor and reducer, motor power is transferred to
the speed reducer by belt, and then transferred to V barrel by coupling. So V barrel runs continuously
and make the materials mixed by moving up and down, back and forth. This type of V shaped mixer is
suitable for case of good fluidity material, small differences materials, having not high requirement on
mixing effect, and having requirement on mixing time. Because material flow smoothly in a "V" mixing
vessel and won't destroy the material original shape, the V type blender is also applicable to mixing
easily-broken, easily-wear materials, fine powder, block materials and materials with certain moisture
content.
2, Application:
This V shaped mixer is usually used for trial production in government mechanism, universities, research
institution etc.
3, Tech Specs:

Specs Model	Tank Volume (L)	Capacity (L)	Speed (rpm)	Power (kw)	Weight (kg)
CMPV-5	5	2.5	25	0.37	40
CMPV-8	8	4	25	0.37	50
CMPV-10	10	5	25	0.37	55
CMPV-20	20	10	25	0.55	70
CMPV-50	50	25	25	0.55	200
CMPV-100	100	50	20	0.75	300

4, Structure:
5, Performance & features:
01 Material: stainless steel 304 / 316L (special materials like wear-resistant, anti-corrosion materials available);
02 Surface treatments: polish/sandblasting (special treatment like wear-resistant, anti-corrosion treatment available);
03 Mixer tank: V-shaped;
04 Mixing time: 5-20 minutes (depends on different material features & production requirement);
05 Working model: batch mixing;
06 Speed reducer;
07 Rotation speed: fixed speed (changeable speed available);
08 Openings on top: feeding inlet, manhole (can be customized);
09 Discharge valve: manual butterfly valve (can be customized);
10 Working condition: normal pressure and temperature (pressure & temperature requirement available);
11 Power supply: 220V 50HZ single phase/ 380V 50HZ 3 phase (can be customized);
12 Non ex-proof motor, electronic elements, control cabinet (ex-proof requirement available);
13 Other customized features: to be confirmed;
6, Application industries:
7, Our Factory:

---
