Sts Keypad Prepaid Single Phase Electricity Energy Meter

US$12.00-25.00 1 Piece (MOQ)

Basic Info.

Model NO.
DDSY395
Display
Digital
Installation
Direct Connected
Usage
Multi-Functional Energy Meter, Watt-Hour Meter, Meter for Industry and Home Use, Standard Electric Energy Meter, Prepayment Meter, Reactive Energy Meter, Multi-rate Watt-hour Meters, Maximum Demand Meter, Sts Meter
Electric Equipment
Single-phase
Theory
Electronic Meter
Power Meter Connection
Terminal
Measured Signal
Pulse Peak
Type
Energy Meter
Certification
ISO
Customized
Customized
After-Sales Service
Support Online Checking
Color
Grey
Transport Package
Carton Packing
Specification
5(60)A
Trademark
SANFRAN
Origin
China
HS Code
9028301300
Production Capacity
500000PCS/Month

Product Description

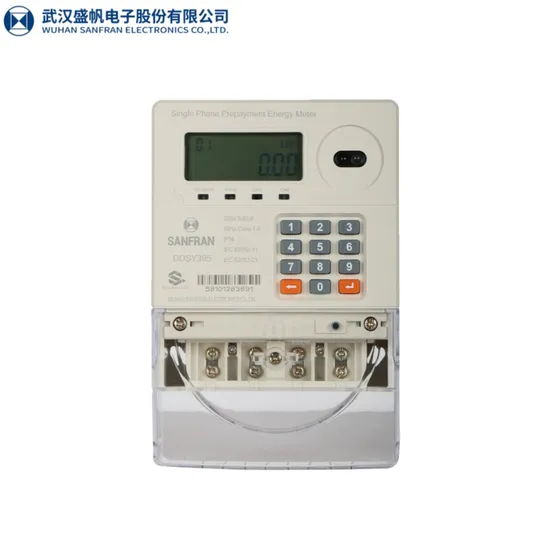

Single phase keypad prepaid energy meter
Single phase keypad prepaid energy meter
DDSY395 Single phase keypad prepaid energy meter is a keypad type, automatically connection or disconnection prepaid electricity meter. It can be top up with SanfranPay vending software directly and communicate with AMI system via LORA-RF or PLC module. This meter is comply with STS standard, can be widely used for counting the electricity consumption of users over a period of time.
Functions and Features:
★Meter recharge by inputting TOKEN ★Utilities can set TOU price into meter on request
★Ingress protection IP54 waterproof ★Anti-tamper magnetic field protection
★Up to 8 years battery life ★MD(maximum demand measurement)
★Remote connection/disconnection ★Low credit alarm
★Real-time clock ★Overdraft collection
★Check data by inputting the short code ☆LORA-RF communication
★ Basic features ☆ Extended features
Specification:
Electrical Nominal Voltage 230V
Working Voltage Range 70%~120%Un
Active Energy Constant 1000imp/kWh
Power Consumption in Voltage Circuit <2W <8VA
Power Consumption in Current Circuit <1VA
Operation Temperature Range -25ºC-70ºC
Storage Temperature Range -40ºC-85ºC
Electric Magnetic Compatibility
 AC Insulation Strength 4kV at 50Hz during 1min
Impulse voltage 1.2/50 us mains connections 8kV
Electrostatic Discharges Contact discharge 8kV
Air discharge 16kV
Electromagnetic RF Field 27MHz-500MHz 10V/m
100KHz-1GHz 30V/m
Fast transient burst test 4kV
Protection Class II

Parameters:
Model DDSY395
Current(Imax) 5(80)A
Accuracy class 1.0

Dimension:
LCD Display:
