US$1,500.00
|
10 Tons
(MOQ)
|
Basic Info.
Model NO.
Loose Flanged Tee
Wall Thickness
En545 En598 Standard
Finish
Epoxy Coating/Black Paint
Pressure Rating
Pn10 Pn16 Pn25 Pn40
Certification
ISO, API, CE
Loosing Flange Tee
Loosing Flange
Key
Flanged Pipe Fittings
Transport Package
Wooden Case
Specification
DN40x40 to DN600x600
Production Capacity
20000 Tons Per Year
Packaging & Delivery
Package Size
11.00cm * 11.00cm * 11.00cm
Package Gross Weight
1000.000kg
Product Description

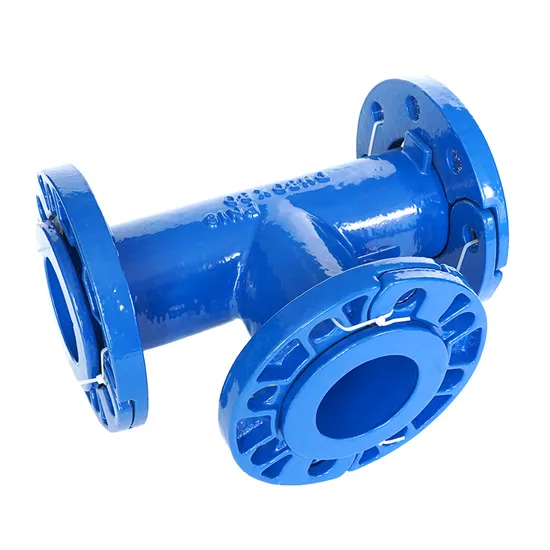

Customized En545 Ductile Iron Pipe Fitting Loosing All Flanged Tee for Ductile Iron Pipe
DEKO group's products has been covered in the municipal engineering projects, drainage system, constructions, fire control system and urban public facilities related products, such as Cast Pipe,Pipe Fitting,Valve, Manhole cover, Hardware products, Aluminum die casting, Aluminium profile, Public Illumination,Urban Furnishing,Flange and Pipe Repair Clamps etc. Product Parameters
| Material | Ductile iron grade 500-7/ 450-10 in accordance with ISO 1083 |
| Standard | EN545, EN598, ISO2531, BS4772, AWWA C110, AWWA C153, GB/T13295 |
| Certificate | ISO9001, ISO14001, SGS,WRAS |
| Test | In accordance with ISO 2531 / EN 545 / EN598 and 100% water pressure test |
| Connection | DIN2576, BS4504 PN16, ANSI B16.5 |
| Flange Drilling | PN10 / PN16 / PN25 according to BS4504 |
| Internal Lining | Cement, conform to ISO4179/ Fishon Bonded Epoxy (FBE) |
| External coating | Zinc + Bitumen, conform to ISO8179/ Fishon Bonded Epoxy (FBE)/ Epoxy/ Bitumen |
| Usage | Jointed by the bolts, nuts and sealed by the gaskets |
| Note | the gaskets, bolts & nuts are supplied respectively as your special requirement |
Product Description
IF YOU WANT TO SEE MORE RELEVANT PRODUCTS,PLEASE CONTACT US,WE WILL SEND YOU FULL OF OUR LIST
------RELATED PRODUCTS------
Company Profile
HEBEI DEKO COMMERCIAL CO.,LTD (hereinafter referred to as the "DEKO group"), the company is located in China's "Land of Casting" -HEBEI province, we are engaged in the wholesale, retail, research and development and sales of products for the integration of import and export company and we assembled fist-class factories in domestic, using the most advanced production facilities and technology to provide the best quality for our customers, DEKO group's products has been covered in the municipal engineering projects, drainage system, constructions, fire control system and urban public facilities related products, such as Cast Pipe,Pipe Fitting,Valve, Manhole cover, Hardware products, Aluminum die casting, Aluminium profile, Public Illumination,Urban Furnishing,Flange and Pipe Repair Clamps etc., DEKO group has been undertaking some domestic and foreign projects every year round and has always been praised by our customers. At present our products have been exported to Europe, South America,Africa, Asia, Middle East and Southeast Asia etc.
DEKO group adhering to the"first-class brand,first-class service"purpose, to keep improving product quality as the basis and advancing with the times, providing high quality, high standard products to our customers, DEKO group will develop into a"first-class products,first-class quality,first-class service"global company in future.
Q. Do you accept OEM service?
A: Yes, we do.
Q. Can I get free samples?
A: Yes, And you only need to bear the delivery costs, if the samples are not too big.
Q.What information should I let you know if I want to get a quotation?
A: Size, design standard, material, package, Quantities, etc...
Q.How can you assure your quality?
A:We have equipped the modern quality control system as well as our quality engineer always check step by step from mold ,production before shipment.
>>
