Farming Machine/Agricultural Machinery/Combine Harvester

Product Description

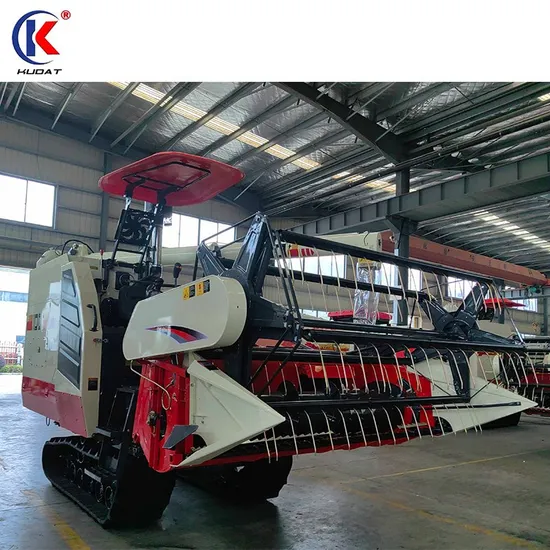

4LZ-6.0Z Full Feed Combine Harvester
Product Description
Chassis Section
1. Unique chassis design with high load capacity ,chassis ground clearance reaches 650 mm which makes good passing performance in muddy paddy.
2. Unique thrust wheel design features long life time.The outer wheel body is widened to 48mm (the widest of the same model), which increases the contact area with the track and effectively delays the service life of the track.
3. Unique floating wheel design - more comfortable over the field.
4. The guide wheel adopts four-lip self-rotating compression type attached shaft oil seal, which is multi-layer waterproof, and effectively prevents the entry of muddy water and delays the service life.
5. Upgrade tension structure features with high reliability.
Threshing & Cleaning Section
1. Adopts big threshing cylinder to increase hitting area and extend hitting time to achieve better threshing performance.
2. The unique belt drive structure makes transmission easier.stable power output and low maintenance cost.
3. Efficient sorting structure has higher sorting effect.
Product Parameters

Item		Unit	Description
Complete Machine	Model	/	4LZ-6.0Z
	Overall Dimension ( L x W x H)	mm	5170 × 2620 × 2930
	Cutting Width	mm	2200
	Complete Machine Weight	kg	3750
	Feeding Capacity	kg/s	6
	Min. Ground Clearance	mm	330
	Rubber Track	mm	500*90*53
	Threshing Cylinder	mm	Φ640 x 2041
	Grain Tank Capacity	L	1400
	Oil Tank Capacity	L	210
	Working Efficiency	hm2/h	0.35-0.6
	Oil Consumption	kg/hm2	≤32
	HST	/	45cc
Engine	Model	/	Xinchai stage
	Type	/	Four Cylinders, Intercooling, Turbo, 4 Strokes
	Standard Power	kw	75
	Standard Speed	r/min	2400

Detailed Photos
