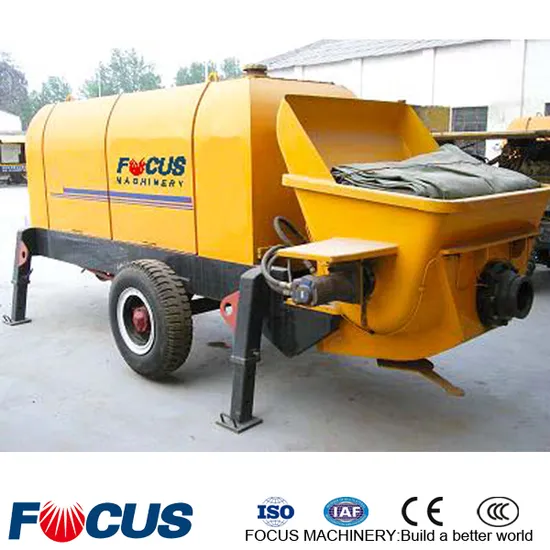

Portable Jbs40 Canada Concrete Mixer Pump for Sale

Product Description

Portable JBS40 Canada Concrete Mixer Pump For Sale
FOCUS PUMP ADVANTAGE
1.REXROTH oil cylinder
2.High quality hydraulic components
3.Reliable pumping and lubricating system
FEATURE
1.Why would our clients choose FOCUS trailer mounted line pump?
FOCUS trailer mounted line pump is categorized into two types of engine powered: electric motor and diesel engine. Main features are as follows:
1. Open hydraulic system with tri-pump and two circuit is adopted in the concrete pump, constant power control and pressure cut-off control can promise a multistage and reliable main pump.
2. High quality hydraulic components and valves---- use German REXROTH.
3. The equipped leading overflow valve ----makes the overflow to be safer, the main pumping circuit and S valve circuit of the trailer mounted line pump are independent to each other, which makes the working system reliable and the changeover steady.
2.What are the main features of FOCUS trailer mounted concrete pump?
*Power system
Main hydraulic pumps are famous German REXROTH products.
Engine: German Deutz
*Electric control system
The reversing control of the trailer pump is electric-hydraulic type. The electric part is controlled by PLC, which is reliable, more accurate with small impact. The main oil pump is under the famous brand of Kawasaki from Japan.
Main electric elements are imported original OMRON, Siemens, LG, etc.
*Hydraulic system
The unique open hydraulic system and hydraulic cushion technology contribute to the smaller exchange impact and less heat of the system. Meanwhile, with the famous brand of main pump and hydraulic valve, the safety and reliability of the concrete pump are guaranteed.
*Pumping system
Pumping displacement variable adjustment: Change the pumping displacement according to the construction to meet the requirement of the condition.

Model Parameter	HBTS60-13-90	HBTS80-13-90	HBTS80-16-110	HBTS40-13-45	HBTS40-13-55	BS30D	BS25E
Main oil pump	Kawasaki, South Korea	Kawasaki, South Korea	Kawasaki, South Korea	Kawasaki, South Korea	Kawasaki, South Korea	Kawasaki, South Korea	Rexroth series
Displacement of main oil pump (ml / r)	112×2	112×2	140×2	112	112	112	71
Hourly workload (cubic)	60	80	80	40	40	30	25
Motor Power	90	90	110	45	55	37	37
Bore / stroke of main oil cylinder (mm)	Φ125/1650	Φ125/1650	Φ140/1800	Φ100/1100	Φ100/1100	Φ80/845	Φ80/845
Concrete cylinder bore / stroke (mm)	Φ200/1650	Φ200/1650	Φ200/1800	Φ160/1100	Φ160/1100	Φ140/845	Φ140/845
Hydraulic hose	Italy Manuli	Italy Manuli	Italy Manuli	Italy Manuli	Italy Manuli	Italy Manuli	Italy Manuli
Seal	American Parker	American Parker	American Parker	American Parker	American Parker	American Parker	American Parker
Electronic control system	Schneider, France	Schneider, France	Schneider, France	Schneider, France	Schneider, France	Schneider, France	Schneider, France
PLC unit	Omron Japan	Omron Japan	Omron Japan	Omron Japan	Omron Japan	Omron Japan	Omron Japan
Remote control	Wireless remote control	Wireless remote control	Wireless remote control	Wireless remote control	Wireless remote control	Wireless remote control	Wireless remote control
Pressure gauge	Imported from Germany	Imported from Germany	Imported from Germany	Imported from Germany	Imported from Germany	Imported from Germany	Imported from Germany
Button	Schneider, France	Schneider, France	Schneider, France	Schneider, France	Schneider, France	Schneider, France	Schneider, France
Lubrication system	Fully automatic hydraulic	Fully automatic hydraulic	Fully automatic hydraulic	Fully automatic hydraulic	Fully automatic hydraulic	Fully automatic hydraulic	Fully automatic hydraulic
Outlet diameter (mm)	Φ180	Φ180	Φ180	Φ125	Φ125	Φ100	Φ100
Piping (m)	150Φ125	150Φ125	150Φ125	120Φ80 or 100Φ125	120Φ80 or 100Φ125	120Φ80 or 100Φ100	120Φ80 or 100Φ100

ZHENGZHOU FOCUS MACHINERY
Established in 1982, Zhengzhou Focus Machinery Co., Ltd. is the explorer and by far the biggest professional construction machinery manufacturer in Zhengzhou, China. We mainly manufacture concrete batching plant, mobile concrete mixing plant, twin-shaft concrete mixer, small rotary concrete mixer, compulsory asphalt mixing plant, asphalt drum mixing plant, mobile asphalt plant, trailer concrete pump, concrete pump with mixer, dry mortar mixing plant, truck mounted concrete pump, concrete truck mixer, tower crane, construction hoist, cement bag splitter and pneumatic conveyor, etc.

FOCUS_BUILT A BETTER WORLD.

---
