Copper Tube Pre-Insulating Twin Cord End Terminals

US$0.005 10,000 Pieces (MOQ)

Basic Info.

Model NO.

Application

Conduct Electricity, Transmission of Electrical Signals

Character

Insulation

Species

Terminal

Production Process

Cold Pressing

Shape

Round

Interface Type

AC/DC

Certification

Brand

Mogen

Wire Range

0.5mm2-16mm2

Color

Red Blue Black Yellow Gray Orange

Transport Package

Bag Box Paper

Specification

Trademark

Origin

HS Code

8536900000

Production Capacity

5000, 000PCS/Year

Product Description

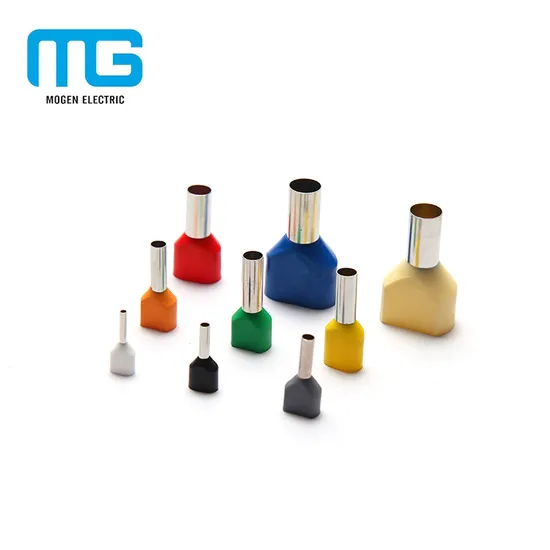

Copper Tube Pre-Insulating Twin Cord End Terminals
Product description
Copper Tube Pre-Insulating Twin Cord End Terminals
Terminal body: Copper
Material: RoHS approved copper, PP Insulation.
Finish: Tin plated
Standard: CE, RoHS, TUV, SGS, CQC, SASO
Packaging Detail: 1000PCS per polybag, each bag per paper box
FOB Port Shanghai/Ningbo

ITEM NO.	Dimension(mm)						Conductor section		Color
	F	L	W	B	D	C	A.W.G	mm2	German	French
TE0508	8	14.5	5	6.5	1.8	1.5	2×22	2×0.5	Orange	White

TE7508	8	14.7	5.5	6.7	2.1	1.8	2×20	2×0.75	White	Blue
TE7510	10	16.7
TE1008	8	15.1	5.5	7.1	2.3	2	2×18	2×1.0	Yellow	Red
TE1010	10	17.1
TE1508	8	15.5	6.4	7.5	2.6	2.3	2×16	2×1.5	Red	Black
TE1512	12	19.5
TE2510	10	18.5	8	8.5	3.3	2.9	2×14	2×2.5	Blue	Grey
TE2513	13	21.5
TE4012	12	23.1	8.8	11.1	4.2	3.8	2×12	2×4	Grey	Orange

TE6014	14	26.1	9.5	12.1	5.3	4.9	2×10	2×6	Black	Green

TE10-14	14	26.6	12.6	12.6	6.9	6.5	2×8	2×10	Lvory	Brown

TE16-14	14	31.3	19	17.3	8.7	8.3	2×6	2×16	Green	Lvory
