G10 TYPE E TYPE F Flange Insulation Kit Gasket For Different Flange

Product Details

Product Description

Product Description
Material:Surface:Delivery Time:Product Name:Application:Type:High Light:

Plain Phenolic/Mylar/Teflon	Zinc Plated For Steel Washer
Normally In 10-15 Days	Flange Insulation Kit Set
Pipeline Flange Corrosion Protection	Type F
TYPE F Flange Insulation Kit, TYPE E Flange Isolation Gasket Kit, Type F Flange Insulation Kit

G10 TYPE E TYPE F Flange Insulation Kit Gasket for different Flange

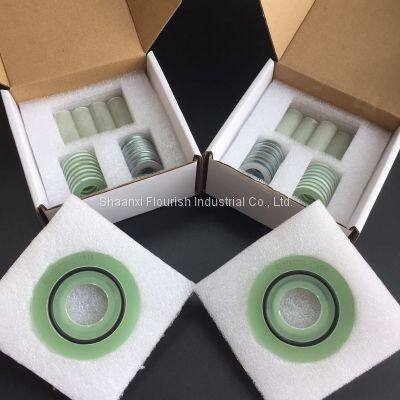

A flange isolation kit protects a flanged joint from the corrosion from static currents (by preventing a metal-to-metal contact among flanges, stud bolts, and gaskets). A flange insulation kit consists of one washer for each nut, one full-length insulating sleeve for each bolt, a gasket (type F, E, D, O), and thick plated steel washers for each nut

Item	Insulation Material		Material of Insulation Gasket	Max. Temp.(℃)	Insulation Resistance(Ω)
	Sleeve	Washer		Pressure Class (lb)
General			PTFE Solid Gasket	-100～100	Over 2.0 x 1013
				150
			Reinforced PTFE Gasket	-200～200	1.3 x 1011
				300
			Neoprene Faced Phenolic Gasket	-30～120	RUBBER	CR 1.6 x 107
	PTFE			150
	Epoxy	Epoxy	Glass Reinforced Epoxy Plate Gasket with Rubber O-Ring	-40～150		EPDM 2.0 x 1013
	Phenolic	Phenolic		600
			Reinforced Phenolic Plate Gasket with Rubber O-ring	-40～150		VITON 9.7 x 109
				600
			Reinforced Phenolic Plate Gasket with Rubber O-ring	-60～150		NBR 1.3 x 1011
				600
High Pressure	Mica	Mica	Epoxy Faced Metal Plate with Rubber O-ring	150		-
	PTFE	Epoxy		1500
	Epoxy	Phenolic	Epoxy faced Metal Plate with PTFE Seal	150	Over 2.0 x 1013
	Phenolic			2500
High Temp & Pressure	Mica	Mica	KAMMPROFILE Gasket with STARPITE	1000	9.9 ｘ 1010

Details:
The purpose of flange isolation kits is to prevent the (electrolytic) corrosion of flanges and flanged joints that static currents present on a piping system may induce.
The gasket isolation kit consists of a special gasket, isolation sleeves for all the stud bolts and nuts, and special washers. These components are manufactured in special materials with proper chemical stability, low water absorption, and dielectric properties.
Gasket Type:
Type E (Full Face Gasket)This gasket kit provides complete protection of both flange faces. The gasket has same outside diameter of
flanges. This feature will prevent collection of foreign matter between the flange faces to ensure complete cathodic isolation.
Type F (Rased Face Gasket)
This gasket is manufactured to fit only the raised face surface of the flanges. Outside diameter of the gasket is designed to be slightly less
than the inside diameter of the bolt circle. It is recommended that the flanges be wrapped to prevent foreign material from "shorting out"
the flanges.
Type RJ (Ring Type Joint Gasket)

---
