High Quality Dental Equipment Surgical Implant Saw Dental Handpiece

Product Description

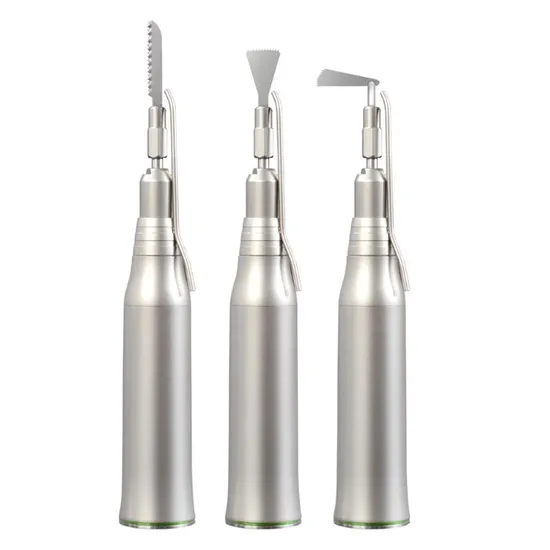

Product Description Surgical Saw Dental Handpiece
Material: stainless steel
Type: contra angle , straight handpiece, long contra angle, long straight handpiece
Scope of surgical saw dental handpiece: Implantation, orthopedics, ear, nose and throat, surgical lengthening straight bending machine, maxillary sinus lifting and opening window, bone extraction, and bone grinding can all be used.
Specification of surgical saw dental handpiece:

Type:	DGZ-R	DGZ-S	DGZ-O
Transmission ratio:	3.2 : 1	4 : 1	4 : 1
Strokes or angles:	1.8 mm	3°	17°
Frequency (strokes/min):	12,300	12,300	12,300
Maximum drive speed:	40,000 min -1	40,000 min -1	40,000 min -1
Working direction:	Sagittal	Oscillating	reciprocating movement
	with reciprocating motion, forward / reverse cutting direction	with sagittal motion, cutting direction parallel to the axis	with oscillating motion, cutting direction 90° to the axis

Feature of surgical saw dental handpiece:
1. Strong power, saw frequency at max speed : 12300/min, transmission ratio : 4 :1,Blade movement 1.8mm;
2. Reciprocating movement, Sagittal saw blades for Saw Handpiece, excellent cutting effect;
3. The saw blade is replaceable, low vibration and disassemble;
4.Standard interface, which can be equipped with multi-brand implant motors
5. The whole machine can be disassembled and sterilized at high temperature.
Advantages:
1. Outstanding chip power
2. Low virbation , disassembly
3. Stainless steel material , more durable
4. E-type connect with implant motor

Detailed Photos

Related Products

Certifications
Our workshop
FAQ
1.How to place an order? Once confirm the quantity for each product, please inform us, then we will make an invoice for you. After payment, the goods will be delivered. 2.How to make payment? You can pay us by western union and bank transfer. 3.What's the delivery time? It takes 7-10 days by express; it takes 15-20 days by air; it takes 30-45 days by sea. It depends on which transportation way you choose. 4.What's the min. order quantity? There is no min order quantity, any quantity is ok for us. 5.Can you supply sample? Yes, for some products, we can supply free sample, but the customer needs to pay the freight fee. For details, please contact us.

---
