UK Deepsea Dse8620 Mkii Synchronising & Load Sharing Auto Mains Failure Control Module

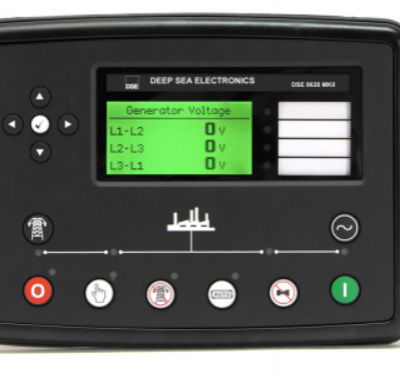

DSE8620 MKII Synchronising & Load Sharing Auto Mains (Utility) Failure Control Module
The DSE8620 is an Auto Mains (Utility) Failure Control Module suitable for paralleling single gensets (diesel or gas) with the mains (utility) supply. Designed to synchronise a single genset with a single mains (utility) supply, the DSE8620 will automatically control the change over from mains (utility) to generator supply or run the generator in synchronisation with the mains (utility) to provide no-break, peak lopping and peak shaving power solutions.
The module can indicate operational status and fault conditions on the LCD screen (multiple languages available), by illuminated LED, audible sounder and SMS messaging.
Comprehensive communications are also available via RS232, RS485 & Ethernet for remote PC control and monitoring, and integration into building management systems. The comprehensive event log will record up to 250 events to facilitate maintenance.
OVERALL SIZE
240 mm x 181 mm x 42 mm (9.4" x 6.8" x 1.6")
PANEL CUTOUT SIZE
220 mm x 160 mm (8.7" x 6.3")
MAXIMUM PANEL THICKNESS
8.0 mm (0.3")
WEIGHT
0.88kg
PRODUCT VARIANTS
8620-01 - 8620 Auto Mains (Utility) Failure Control Module

---
