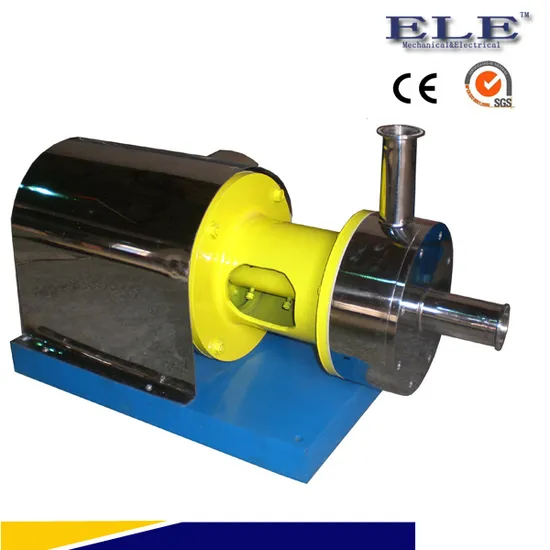

Elr/1/6 Inline Homogenizer Pump

Product Description

Introduction
ELR series inline high shear pump of ELE product which imported advanced technology, integrated blending,emulsifying,smashing, dispersing and dissolving into one machine.Widely apply to heavy oil, diesel, asphalt, food, pharmacy, paint, ink,drink, dyeing and finishing, rubber, parfume, cosmetic and daily health product, ...etc.
Features:
· Reasonable shape design makes the machine more stable, easy to operate and maintain.
· High working accuracy, large capacity and wide viscosity, more suitble for industrial in-line production.
· Rotor and stator with special heat treating, abrasion resistance of the surface is 2 to 3 times of common stainless steel.
· Rotor and stator are forged with imported 304 or 316L stainless steel, material quality compact and abrasion resistant. While the industry generally adopt weld forming, easy to cause weld stress and defects such as slag inclusion, blow hole etc.
· The rotating parts have passed dynamic balance test and static balance test, ensure the stability in high speed moving condition, reduce noisy, prolong the service life.
· Mechanical seal is designed between the drive shaft and axle bearing, , that avoid the block problem caused by materials get into the bearing.
· Key components are with grinding process treatment, the matching of rotor and stator according with international standard.
· The connection of motor and bearing support can adopt solid coupling or elastic coupling, coaxiality tolerance, perpendicularity tolerance and end face run-out tolerance are all do better than the Industry standard.
· Control system can be explosion-proof or non explosion-proof as per your requirement, the explosion-proof type according with international standard.
Technical Data

Model	Power (kw)	Rotation (rpm)	Flow (m3/h)	Inlet (mm)	Outlet (mm)
ELR401/1/6	1.1/1.5	3000	1	DN40	DN32
ELR405/1/6	4	3000	4	DN40	DN32
ELR410/1/6	7.5	3000	8	DN50	DN40
ELR415/1/6	11	3000	12	DN65	DN50
ELR420/1/6	15	3000	18	DN65	DN50
ELR425/1/6	18.5	1500/3000	20	DN65	DN50
ELR430/1/6	22	1500/3000	22	DN65	DN50
ELR450/1/6	37	1500	30	DN100	DN80
ELR460/1/6	45	1500	35	DN125	DN100
ELR475/1/6	55	1500	40	DN125	DN100
ELR490/1/6	75	1500	55	DN125	DN100
ELR510/1/6	90	1500	75	DN125	DN100
ELR530/1/6	110	1500	85	DN150	DN125

---
