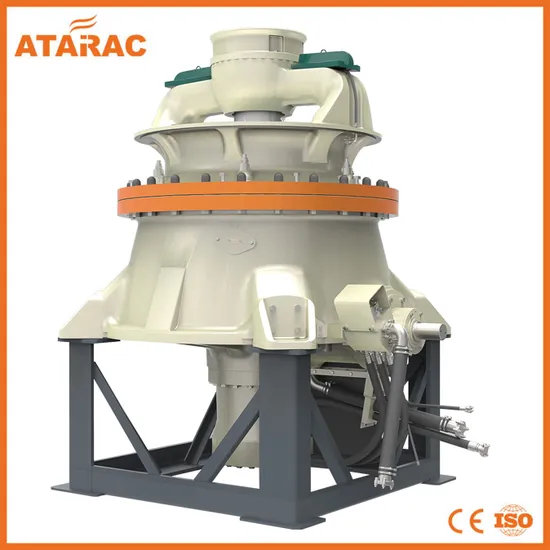

Atairac High Automation Gpy Cone Crusher Equipment (GPY400)

Product Description

GPY series single-cylinder cone crusher developed and manufactured by our company is currently the most advanced cone crusher in whole China. It targets at high end market and is integrated with the advanced mechanical, electrical and hydraulic technologies as a whole, which achieves the perfect crushing efficiency. GPY cone crusher features in robust casting steel frame, forged alloy main shaft, and high accurate arc gear transmission system. Combined with multi options of crushing chamber and with PLC automatic control system, the GPY cone crusher could fully play its performance and advantages. It is widely used for the fine and coarse crushing of various kind of stones and minerals, which features in high crushing efficiency, and could meets different crushing requirement for our clients.
GPY Advantages High production efficiency
Scientifically design of crushing chamber, large eccentricity, high swing frequency, lamination crushing and hydraulic controlled constant crushing force ensures more stable operation, bigger passing capacity, higher production efficiency and better products shape, as well as reducing the power consumption to the least. High automation
PLC automatic control system can realize the functions of overload protection, tramp iron protection, discharge opening adjustment, chamber cleaning, as well as monitor oil temperature, pressure and flow, machine loading, discharge opening size, etc. so as to ensure the stable running of the machine. High load capacity
Enhanced main frame, main shaft adopting freely supported beam structure, hydrodynamic lubrication designed copper sleeve, as well as sensitive and reliable overload protection system ensures the long and smooth running of the machine even in extremely harsh working condition. Wide adaptability
GPY cone crusher has two types: course crushing and fine crushing. Each type has various kinds of optional crushing chambers. By adjusting the eccentricity, it could adapt to different processing flow and working condition. By adjusting the rotational speed of transmission shaft, it could adjust the grading of finished products, so as to maximum the machine's value Low running noise and vibration
High accuracy of arc gear transmission structure features in lower running noise, higher transmission efficiency, and durable in use. Lower vibration of main machine itself and flexible supporting with overall steel frame minimize the vibration to the least, so as to reduce the cost of foundation Lower installation cost
GPY 200(S) and 300(S) cone crusher uses Compound Cup Type piston design, which reduced installation height. Besides, the overall steel base frame makes the installation more easy and time-saving to reduce the cost Lower operation cost
Special designed crushing chamber, mantle, concave ring and material ensures higher utilization ratio and durable of liners, lower operation cost and minimized downtime. The positive pressure anti-dust system equipped on the machine ensures the clean of lubrication system. No extra grease seal and labor maintenance needed during operation. Most parts can be assembled and disassembled on the upper and lateral side, which makes the machine maintenance more labor-saving and time-saving. Technical Specification (GPY100,GPY200,GPY300)
Technical Parameters (GPY100,GPY200,GPY300)
Technical Parameters(GPY500S,GPY700,GPY1000)
Technical Parameters(GPY500,GPY800,GPY1000)
Packing & Delivery
About our company

---
