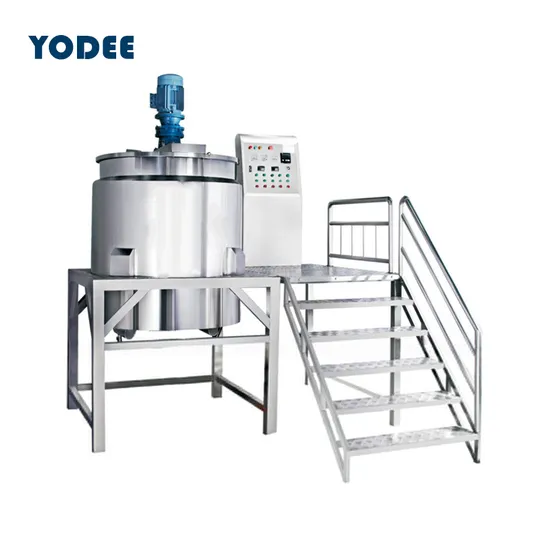

500L Sugar Mixer High-Speed Shearing Emulsification Tank for Sugar Melting

Product Description

500L sugar mixer High-Speed Shearing Emulsification Tank for Sugar Melting
The liquid mixing tank is designed and developed independently by YODEE. It is mainly suitable for the configuration of liquid detergent product, like detergent, shampoo, shower gel, hand sanitizer and so on. It integrates the functions of self-priming AES dissolving, stirring, homogenizing, heating, cooling, pumping and discharging. It is an ideal equipment for domestic and foreign manufacturers to configure washing products.
Technical Features
1.All-round wall scraping and stirring, using frequency conversion speed control, High-quality products with different processes can be produced according to customer requirements.
2.Diversified high-speed homogenizer, strong mixing of solid and liquid raw materials can quickly dissolve insoluble materials such as AES/AESA/LSA in liquid washing production, saving energy consumption and greatly shortening the production cycle.
3.The pot body is welded with three layers of stainless steel, and the tank body and pipes are mirror polished, which meets the requirements of GMP.
4.The tank body can heat and cool the material according to the process requirements.
Structure Type
Three-layer stainless steel tank, upper cover, Upper wall scraping agitation (one-way/two-way), Lower head structure, the bottom
inner/outer circulation homogenizer, the jacket can be heated (electricity/steam), cooled, and thermal insulation layer.
Machine Type
YD-MT-1: The general liquid mixing tank is equipped with 0-63 rpm variable frequency speed regulation stirring, and the bottom is equipped with a high-speed homogenizer which can be variable frequency speed 0-3300 rpm, providing steam heating and electric heating for customers to choose. Usually suitable for large-scale industrial production.
YD-MT-2: Without a homogenizer mixing tank, it is mainly suitable for detergents, cleaning agents, and low-viscosity liquids. At the same time, it is equipped with a 0-63 rpm variable frequency stirring pot. It can also be used as a pretreatment dissolving pot, and is equipped with steam heating and electric heating.
YD-MT-3: Small single-pot mixing tank is suitable for pilot test or laboratory cost ratio analysis before large-scale industrial production, and can also be used as a pilot for small-scale production.
YD-MT-4: PVC anti-corrosion mixing tank is mainly suitable for corrosive products, such as toilet cleaner, etc.
YD-MT-5: The two main pot combined mixing tank are equipped with stirring and homogenization. In the case of relatively large output, the combined stirring pot can save the area of production and centralized feeding and discharging to the greatest extent. In operation More convenient and convenient. Suitable for medium-volume industrial production.
YD-MT-6: Combined mixing tank with multiple main pots, in super-large industrial production, multiple mixing pots share the same platform, so it can be more convenient in feeding and equipment cleaning and maintenance, and can be equipped with a fully automated intelligent operating system. Homogenization, heating and other functions, the platform can be equipped with anti-skid, waterproof and other functions, in the early stage of equipped with material hoist, the entire industrial production can be completed on the platform, or a PC-side remote control system can be used, which can reach the workshop to the greatest extent. Unmanned and intelligent.
Notice: The above information only provides a brief introduction for customers' reference. For detailed application scenarios, please contact the yodee team directly for consultation and discussion.
Parameter

Capacity	Homogenizer Motor(kw/rpm)		Mixing Motor(kw/rpm)		Machine Dimension(mm)
100L	2.2	0-3300	1.5	0-63	1500*1200*2500
300L	3	0-3300	2.2	0-63	2100*1800*2900
500L	5.5	0-3300	3	0-63	2400*2100*3000
1000L	7.5	0-3300	4	0-63	2600*2400*3300
2000L	15	0-3300	5.5	0-63	3000*2800*4000
3000L	18.5	0-3300	7.5	0-63	3200*3000*4200
4000L	22	0-3300	7.5	0-63	3400*3000*4500
5000L	37	0-3300	11	0-63	3500*3200*4800
10000L	55	0-3300	22	0-63	4800*4200*5500

Engineering Case
About Yodee
After-sale Service
1. YODEE products will provide a one-year machine warranty service, and accessories will be replaced free of charge.
2. YODEE will provide lifelong machine technical support and technical support services for the later transformation of the old factory.
3. YODEE will provide engineers to guide the installation of equipment and equipment maintenance training services at the customer's factory if necessary.
4. YODEE can accept customer engineers to Chinese factories for equipment training.
Shipment Service
1. If you have a transportation agent, you can directly arrange to come to our company to pick up the goods.
2. If you do not have a transportation agent yet, YODEE will provide you with different ways of machine transportation services (sea, air, express, rail transportation) according to different situations for choice.
3. Under special circumstances, if the machine exceeds the shipping size of the container, YODEE will still plan and provide you with the best shipping plan for you to choose. Remark
All machine can provide customized service, Please write your requirements and information to Contact YODEE directly at any time, the YODEE TEAM will respond you within 12 hours.

---
