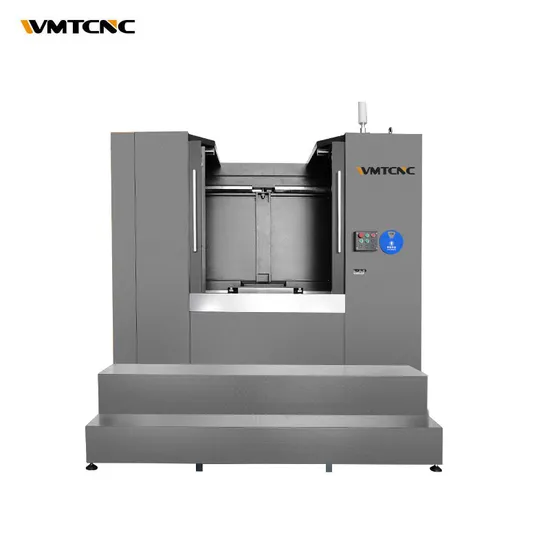

Heavy duty HMC630A CNC horizontal machining center for industry

Product Description

Product Description

Main features:
1. Machine body main structure, 'T'shape and column moving structure to afford high rigidity and travel speed.
2. Standard machine with spindle house oil cooling system to reduce heat distortion during working and keep the stable machining accuracy.
3. Tool magazine, BT50, 24 position Arm type tool magazine are made by OKADA and POJU who are Professional tool manufacturers in Taiwan.
4. Standard JAPAN and GERMANY brand Bearings for all ball screws.
5. TOP TAIWAN brand Ball screw & linear guideway.
6. Three Automatic chip conveyors, two screw type conveyor to move the chips from inside machine to outside chain type conveyor during working, and the outside chip conveyor transfer the chips to chips tank. The whole process is smoothly and high efficiency to clean the chips, reduce the machine body heat, escape from machine body heat distortion.

Specification	HMC630A(Inverted T)
Worktable
Worktable size (W×L)	630×700mm
Workpiece clamping type	24×M16
Changing time of worktables	/
Rotary diameter of workpiece	1380mm
Travel
X/Y/Z axis	1050/750/900
Distance from spindle center to worktable surface	120-870mm
Distance from worktable center to spindle nose	130-1030mm
Spindle
Spindle hole taper	BT50
Spindle speed range	5300rpm
Drive type (Spindle)	Belt type
Spindle power	15/18.5kw
Feed
X/Y/Z axis rapid feed speed	24/24/24m/min
B axis rapid feed speed	10m/min
Tool magazine
Tool magazine model	Manipulator
Capacity	24T
Max. tools weight	15kg
Max. tools length	350mm
Tool change time	5.5s
Accuracy(National standard)
Positioning accuracy (X/Y/Z)	±0.010mm
Re-positioning accuracy(X/Y/Z)	±0.006mm
B axis division accuracy	10''
B axis re-division accuracy	5''
Machine Size
L×W×H	4800x3200x2950mm
Machine weight
Max. loading of worktable	1200kg
Machine weight	12000kg

Detailed Photos
Company Profile
Customers' Feedback
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
