US$0.40
|
1,000 Square Meters
(MOQ)
|
Basic Info.
Model NO.
HY PP HOSE GUARD
Kind
Thermoplastics Pipes
Water Absorption
1.5%~3.5%
Contraction Percentage
<0.4%
Tensile Strength
81~130MPa
Texture
PVC PA PE TPV TPE
Color
Black, White, Red, Blue, Yellow, Orange, Custom
Transport Package
PE Bag/Film/Tray/Customized
Specification
Customization
Production Capacity
10000s. M/Day
Product Description

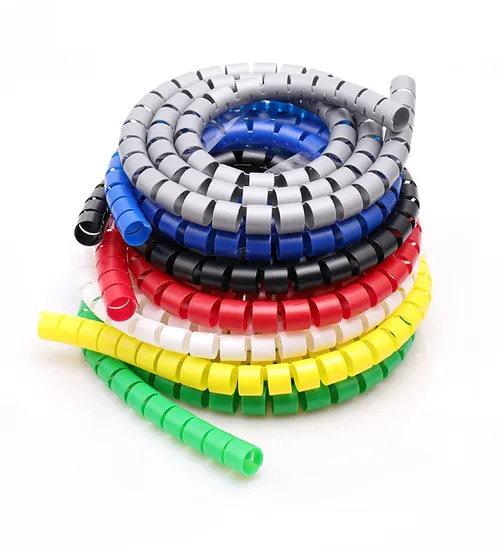

PP Plastic Spiral Protective Hose Sleeve Spiral Hose Guard
Features:
1.Resistant to acids, oils and solvents 2.UV resistance,abrasion resistant 3.Protect hose increases usable life of hose Recyclable4.Flame retardant available
Material:high-density Polyethylene, spiral-formed protection system, wear, cut, and crush-resistant polymer Tensile Strength 25MPa at room temperature.
Surface:
Flat Surface
Round Surface
Specifications:
| ITEM | SIZE(ID)MM | WIDTH MM | MID THICK MM | SIDE THICK MM | LENGTH M |
| 1 | BHT-8 | 10 | 1.5 | 0.5 | 100 |
| 2 | BHT-10 | 11 | 1.4 | 0.5 | 100 |
| 3 | BHT-12 | 12 | 1.5 | 0.5 | 100 |
| 4 | BHT-14 | 13 | 1.5 | 0.5 | 100 |
| 5 | BHT-16 | 15 | 1.8 | 0.5 | 100 |
| 6 | BHT-18 | 16 | 2 | 1 | 100 |
| 7 | BHT-20 | 17 | 2 | 1 | 100 |
| 8 | BHT-22 | 18 | 2.3 | 1 | 100 |
| 9 | BHT-25 | 21.5 | 2.3 | 1 | 100 |
| 10 | BHT-28 | 23 | 2.5 | 1 | 100 |
| 11 | BHT-30 | 23 | 2.5 | 1 | 100 |
| 12 | BHT-32 | 23 | 3 | 1 | 100 |
| 13 | BHT-35 | 24 | 3 | 1 | 100 |
| 14 | BHT-38 | 25 | 3.2 | 1 | 100 |
| 15 | BHT-40 | 27 | 3.8 | 1 | 50 |
| 16 | BHT-42 | 27 | 3.8 | 1 | 50 |
| 17 | BHT-45 | 28 | 4 | 1 | 50 |
| 18 | BHT-50 | 29 | 4.5 | 1 | 50 |
| 19 | BHT-60 | 30 | 5 | 1.2 | 50 |
| 20 | BHT-74 | 42 | 5 | 2 | 2 |
| 21 | BHT-80 | 45 | 5 | 2 | 2 |
| 22 | BHT-88 | 45 | 5 | 2 | 2 |
| 23 | BHT-100 | 50 | 5 | 2.5 | 2 |
| 24 | BHT-115 | 50 | 5 | 2.5 | 2 |
Application:
The use of spiral hose guard is an economical and convenient method of protecting and extending the life of hydraulic and pneumatic hoses, cables, wires and rope from premature wear.Spiral hose guard will withstand the extremes of climate and operating conditions.Spiral Guard Wrap protects against abrasion, cuts, crushing, UV and various hazards.
>>
