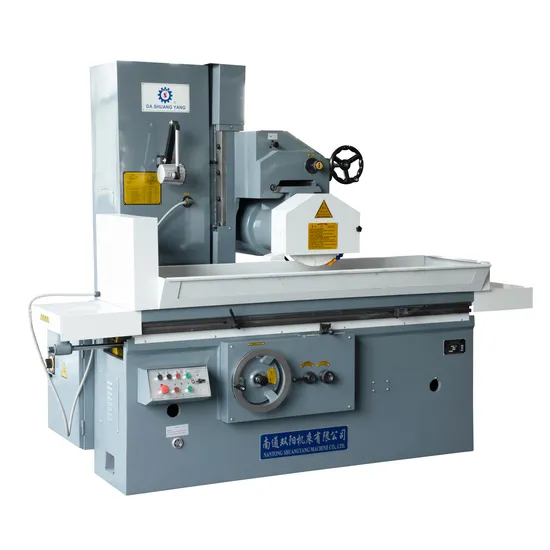

Grinding Head Move Type hydraulic Automatic Surface Grinding Machine M7150 500X1250

Product Description

Surface Grinding Machine M7150
With CE and ISO 9001 certificate

SPECIFICATION		M7150
S ize of workatable ( L × W × H )		mm		125 0×500		1600 × 500		2000 × 500
Max . Longitudinal movement of worktable		mm		1350		1700		2100
Max. Distance from the spindle centerline to the worktable surface		mm		800		800		800
Max. Cross movement of grinding head		mm		550		550		550
Max. Vertical movement of grinding head		mm		600		600		600
V ertical movment of the grinding head by hand wheel	Per graduation	mm		0.01		0.0 1		0.0 1
	P er revelotion	mm		1.00		1.0		1.0
Rapid lifting motor	P ower	KW		0.37		0.37		0.37
	S peed	r/min		1440		1440		1440
Abrasive wheel dim ( D × W × d )		mm	400×127×40		400× 127× 40		400× 127× 40
Speed of grindwheel		r/min	1440		1440		1440
T otal power of motor		Kw	12		12		12
Power of spindle motor		KW	7.5		7.5		7.5
Power of o il pump motor		KW	4		5.5		5.5
Processing accuracy		mm/mm	1000:0.015		1000:0.015		1000:0.015
Surface roughness			Ra:0.63		Ra:0.63		Ra:0.63
N/G weight		kg	5300/6000		6000/6900		7000/7800
Packing size(LXWXH)		mm	3600X1930X2480		4600X1850X2350		5100X1850X2350

DETAILS PHOTOS
AS A MANUFACTUR WE STILL USING NATURE TIME AGING FOR RAW MATERIALS
THIS CAN KEEP MACHINES IN LONG TIME USING STILL GOOD PERFORMACE
WORKSHOP
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as surface grinding machine, CNC surface grinder ,CNC Milling Machine ,Vertical Machining Center ,Drilling Machine ,gantry milling machine , CNC gantry milling machine, CNC gantry grinding machine so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in NO 370 Changjiang North Road, NANTONG ,JIANGSU ,CHINA. If you have interest to visit our factory, pls inform
me ahead, i will arrange and company you your visit period.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
