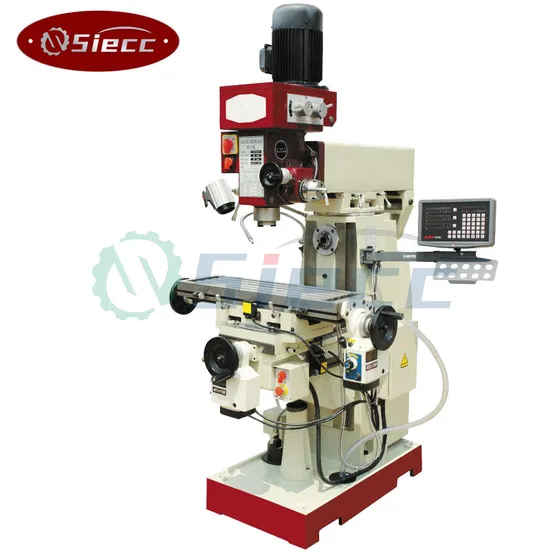

China Factory Price Universal Radial Milling Machine X6336wa

US$4,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
X6336WA
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Controlling Mode
Program Control
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Transport Package
Wooden Box Packaged
Specification
X6336
Trademark
SIECC
Origin
Jiangsu/China
Production Capacity
1000 Sets/Year

Product Description

The turret milling machine X6336WA is made of advanced cast iron, with high precision and long life after manual aging treatment.The lifting platform adopts rectangular guide rail, the contact surface is much, rigid foot.After high frequency processing and fine grinding, the sliding way is plastered, the motion precision and life are good.The main shaft of turret milling machine is made of chrome molybdenum alloy. It is equipped with precision Angle contact bearing. It is processed by tempering and fine grinding, with strong cutting force and high precision.

Item
X6336WA
Spindle taper
ISO40(V) ISO50(H)
Diameter of quill
120mm
Distance from spindle to table
135-585mm
Distance from horizontal spindle to table
0-390mm
Distance from spindle to column
200-700mm
Spindle speeds
(16steps )70-4660r.p.m.(V)
Spindle travel
(12steps)60-1800r.p.m(H)
Feeding of quill
145mm
Max drilling capacity of auto-feeding
(3steps)0.04 0.08 0.15
Head movement
15mm
Table size
45 degrees
Table travel(horizontal/cross/vertical)
1370*360
Feeding range of longitudinal cross travel
1000*320*450
X,Y-axis rapid feed speed
(8steps)22-555mm/min
Z-axis rapid feed speed
1080mm/min
Z-axis motor power
590mm/min
Max weight of workpiece
1100W
T-slot number /width/distance
500kg
Horse power for main motor
3/18mm/70mm
X,Y axis driving motor
5.5kw(V) 4.0kw(H)
Overall dimension
750W
N.W./G.W.
2220*1790*2360mm
