US$7,700.00
|
1 Piece
(MOQ)
|
Basic Info.
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Automatic Grade
Automatic
Certification
CE, ISO 9001
Max.Size of Tool Post
4/6/8
Taper of Tailstock Quill
Mt4
Range of Spindle Speed
150-2500rpm
(Max.Length of Work Piece
450/700mm
Max. Range of Tailstock Quill
100mm
System
GSK,Siemens,Knd,Fanuc
Transport Package
Standard Wooden Case
Specification
1820 mm/2070mm*1100 mm*1550mm
Origin
Taian City, Shangdong Province
Production Capacity
30sets/Month

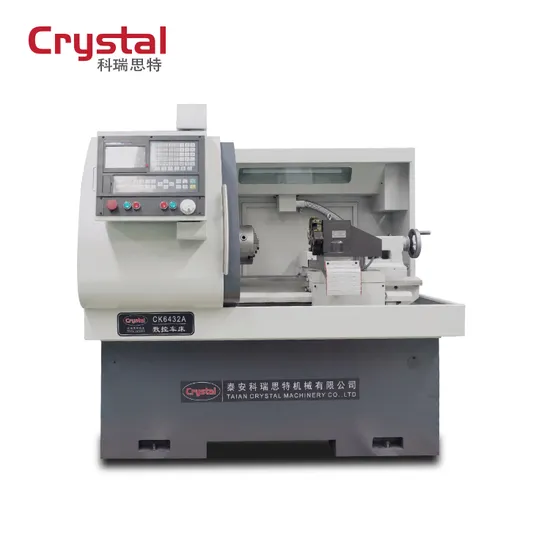

Product Description
NOTE: The currency exchange rate fluctuates greatly,
please consult customer service for the best price.
This machine is widely used in processing and manufacturing the electrical appliance, instrument industry, automobile, motorcycle, fastener bearings, photographic and film machinery, hardware tools, watches, glasses, stationery, motors, valves and gas pipe and other high precise and complex components. It is the ideal high efficient equipment in the hardware machining industry.
1.3 jaw manual chuck
2.Manual tailstock
3.Lighting system, cooling system, automatic lubrication system
4.CNC system: GSK928TD-L
5.4 station tool holder
Optional configurations:
1. CNC System:KND,Fanuc,Siemens
2. hydraulic or pneumatic 3 claw chuck
3. Pneumatic spring collet
4. 6 station tool holder, row tool
5. Automatic bar feeder
6. hydraulic or pneumatic tailstock
Items
| Specifications
|
Max. swim over bed
| Φ360mm
|
Max.swim over carriage
| Φ150mm
|
Max.length of work piece
| 450mm or 700mm
|
Range of spindle speed
| 150-2500rpm
|
Spindle bore
| Φ60mm
|
Spindle drawn tube diameter
| Φ48mm
|
Taper of spindle bore
| MT6
|
Stations of tool carrier
| 4 or 6,8
|
Max.size of tool post
| 20mm×20mm
|
Min.setting unit of motor
| (Z) 0.001mm, (X) 0.001mm
|
Moving speed of post
| (Z) 8 m/min, (X) 4 m/min
|
Taper of tailstock quill
| MT4
|
Max. range of tailstock quill
| 100mm
|
Motor power
| 4KW
|
Packing size (mm)
| 1600/1850×1100×1550mm
|
Net weight/gross weight
| 1200/1300 1300/1450kg
|
Main Features:
1.Independent spindle, stepless speed change, high precision, lower noise.
2. High speed and precision bearing, spindle speed 2500rpm, smooth finish good.
3. Main power is 4 KW. High precision ball screw.
4. High stability one- piece machine bed, higher rigidity cast iron.
5. High frequency quenching rail, high hardness and high wear resistance.
6. Frequency conversion stepless speed regulation.
7. Integrated automatic lubrication.
>>
