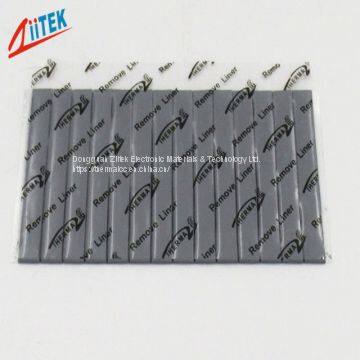

Grey 2.8W/mK thermal conductive gap filler pad for RDRAM memory modules

Product Details

Product Description

Product Description
Grey 2.8W/mK thermal conductive gap filler pad for RDRAM memory modules
The TIF™340 Series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base. Their flexibility and elasticity make them suited to the coating of the very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.
Features
》Good thermal conductive: 2.8 W/mK
》Naturally tacky needing no further adhesive coating
》Soft and Compressible for low stress applications
》Available in varies thickness
Applications
》Cooling components to the chassis of frame
》High speed mass storage drives
》Heat Sinking Housing at LED-lit BLU in LCD
》LED TV and LED-lit lamps
》RDRAM memory modules
》Micro heat pipe thermal solutions
》Automotive engine control units
》Telecommunication hardware
》Handheld portable electronics
》Semiconductor automated test equipment (ATE)

Typical Properties of TIF™340 Series
Color	Gray	Visual
Construction &	Ceramic filled silicone rubber	***
Compostion
Specific Gravity	2.50 g/cc	ASTM D297
Heat Capacity	1 l/g-K	ASTM C351
Hardness	27 Shore 00	ASTM 2240
Tensile Strength	35 psi	ASTM D412
Continuos Use Temp	-50 to 200℃	***
Outgassing(TML)	0.45%	ASTM E595
Dielectric Constant	10.2 MHz	ASTM D150
Volume Resistivity	7.3X10"	ASTM D257
	Ohm-meter
Fire rating	94 V0	equivalent UL
Thermal conductivity	2.8 W/m-K	ASTM D5470

Standard Thicknesses:
0.040" (1.02mm)
Consult the factory alternate thickness.
Standard Sheets Sizes:
8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.
Contact us：Mor information, please contact us: sales22@ziitek.com

---
