3/8 inch 2 way Pneumatic manual air control valve 4A330-10

Product Details

Product Description

Product Description

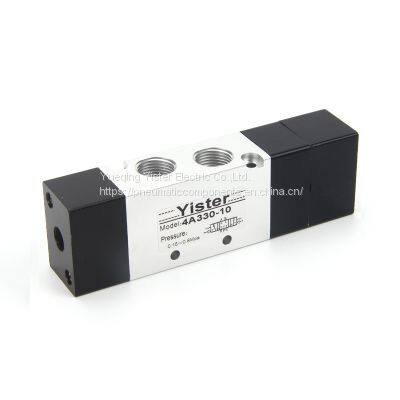

3/8 inch 2 way Pneumatic manual air control valve 4A330-10
Order code
Symbol
Technical parameter

Model	4A310-08	4A320-08	4A330C-08	4A330E-08	4A330P-08		4A310-10	4A320-10	4A330C-10	4A330E-10	4A330P-10
Fluid	Air
Acting	Exterior control
Valve type	5/2 way		5/3 way				5/2 way		5/3 way
Orifice size	25mm2		18mm2				30mm2		18mm2
Lubrication	No required
Port size	In=out=Exhaust=G1/4”					In=out=Exhaust=G3/8”
Protective class	IP65
Pressure range	0.15-0.8MPa
Proof pressure	1.2MPa
Material of body	Aluminum Alloy
Temperature	-5℃~60℃
Response speed	<0.05s

Dimension
Feature
1.Structure in sliding column mode: good tightness and sensitive reaction.
2.4A330-10 Double directional air control valves have memory function.
3.Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
4.No need to add oil for lubrication.
5.Multi-mounting helps to install and apply.
6.Integrate with the manifold to save installation space

---
