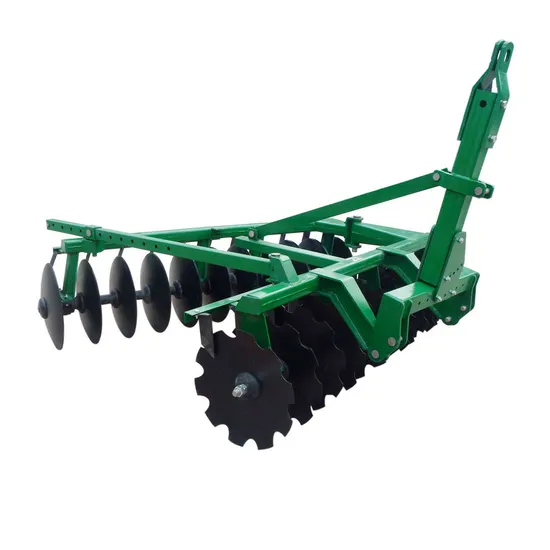

Tractor Mounted Full Suspension Medium Type Disc Harrow

US$530.00
1-9 Pieces
US$525.00
10-49 Pieces
US$515.00
50+ Pieces

Basic Info.

Model NO.
1BJX-1.8
Application Field
Agriculture, Livestock, Aquaculture
Farming Policy
Paddy Field Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Movable Operation
Traction Type
Hanging
Drive Type
Chain Drive
Arbor Configuration
Horizontal Axis
Certification
ECE, EU, CE
Color
Red
Warranty
1year
Product Name
Disc Harrow
Working Width
1800mm
Wrking Depth
140mm
Nos of Disc
16
Size of Disc
22′′x5
Weight
380kg
Tractor HP
40
Transport Package
Iron Frame Net Box
Specification
EU; ECU
Trademark
YCHS
Origin
Yucheng Hengshing Machinery
Production Capacity
1000/Set

Product Description

product description:
Disc harrow is mainly applicable to clean the crop residue before tillage, break the hardened soil and return the chopped straw to the soil, and also can crash the soil after tillage and level the land.
It can be used as tillage machine instead of plow on the cultivated land. With the efficient productivity, reasonable utilization of the power, great ability of cutting and shattering the soil , the soil surface is smooth and loosening after harrowing, it is well suitable for heavy clay soil, waste land and weedy field as well.
Advantages: It is a mounted medium disc harrow for 30-80hp tractor . Notched disc blade of this tractor offset disc harrow in front, and flat plough disc in rear. Fit the scraper for each disc blade to clean the objects. The working depth can be adjusted freely
Model unit 1BJX-1.6 1BJX-1.8 1BJX-2.0 1BJX-2.2 1BJX-2.4 1BJX-2.5
Working width mm 1600 1800 2000 2200 2400 2500
Working depth mm 140
Q'ty of disc 14 16 18 20 22 24
Total weight kg 350 380 420 470 540 650
Matched power hp 30 40 50 60 70 80
Linkage Three point suspension I type Three-point suspension II type
