3/5/7ply Cardboard Making Hydraulic Drive Mill Roll Stand Corrugation Machine

Product Description

3/5/7Ply Cardboard Making Hydraulic Drive Mill Roll Stand Corrugation Machine YIKE GROUP Product Description

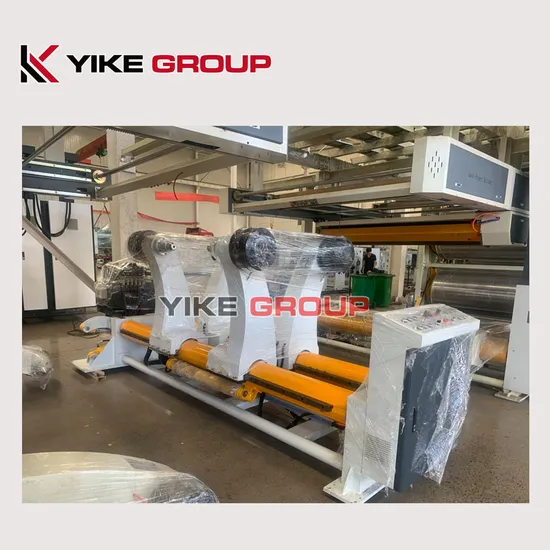

1,Hydraulic shaftless mill roll stand
Technical parameters:

Working wide	2200mm
Paper diameter	MAX: 1600mm MIN:300mm
Paper width	MAX: 2000mm MIN:800mm
Weight capacity	2.5T
Paper head size	Teeth 3 inches 4 inches
brake	Spur gear type 4 points pneumatic
Working air pressure	0.4---0.8Mpa

Main performance characteristics:

★Adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive. ★The brake uses a multi-point brake system, a gear disc structure, equipped with a cooling fan, Yadeke pneumatic components, stable tension, and long life. ★The large-diameter spindle design, the swing arm slides smoothly, and the steel guide rails are treated with high frequency treatment, which is super wear-resistant. ★The hydraulic cylinder is installed on a twisted shaft, which does not bear radial force and is easy to maintain.

Hydraulic system parameters:

Working pressure	Hydraulic cylinder working range	Hydraulic cylinder working range	Hydraulic station motor power	Solenoid valve working voltage
16---18Mpa	¢125×440mm	¢80×1300mm	4KW --380V -- 50Hz	220V--50 Hz

Mainly purchased parts,raw materials and origin:

Serial number	Name of main parts	Brands or place of origin	Remarks
01	Main shaft	Day steel production	¢270mm
02	Swing arm	Production by own	Resin sand gray ironHT250
03	Wallboard	Jigang prduction	Q235AWelding parts
04	Bearing	NSK
05	Main electrical appliance	SIEMENS	Contactor, relay, button
06	Hydraulic station	Shandong zaozhuang	Taiwan oil pump solenoid valve

2,paper trolley,track
Technical parameters:

Track length	6000mm
Paper loading method	Manual
Main frame	14 channel steel and ¢20mm cold drawn round steel

Structural feature:

★Track whole buried, The main frame of the 14th channel with ¢ 20mm cold drawn round welding,the track length 6000mm. ★Each paper with two stage paper trolley,and the paper from the two sides at the same time.

Mainly purchased parts, raw materials and origin:

Serial number	Name of main parts	Brands or place of origin	Remarks
01	Track and paper trolley	TangShang or JiNan	NO14 channel steel,Q235A,steel strip
02	Bearing	C&U

3,High-speed automatic splicers
Technical parameters:

Working wide	1800mm
Link paper speed	200m/min
Air pressure	6 bpa

Structural feature:

★The maximum diameter of the applicable paper:1500mm. ★With the automatic tension control of the original paper holder, the paper can be picked up at high speed and the success rate is high. ★No tail paper receiving, reducing paper consumption (only partially overlapping paper tape with a width of 40mm). ★When paper car take out, the automatic turn out, and the vacuum adsorption, easy paper loading, automatic tension control paper receiving zero turnovers. ★All PLC automatic control, accurate, less failure, easy maintenance. ★The first round of the buffer when you pull the paper, automatic alignment, easy to pull paper. ★Machine superiority cylinder control speed splicers paper receiving moment does not appear normal motor control of rubble, blistering. ★Paper receiving highest speed of 200 m / min.

Main component parameters:

Part name	Specification	Material	Surface treatment
Upper paper guide shaft	¢137mm	45# steel	Round grinding chrome
Lower paper guide shaft	¢150mm	45# steel	Round grinding chrome
Buffer reel guide roller 1	¢126mm	45# steel	Round grinding chrome
Buffer reel guide roller 2	¢137mm	45# steel	Round grinding chrome
Pinch paper roller	¢99mm	45# steel	Round grinding chrome
Hold paper roller	¢99mm	45# steel	Round grinding chrome

Mainly purchased parts, raw materials and origin:

Serial number	Name of main parts	Brands or place of origin	Remarks
01	Breaker	Schneide
02	Contactor	Schneier
03	Relay	Schneide
04	Left and right conversion solenoid valve	Japan SMC
05	Precision pressure regulator	Japan SMC
06	Electric proportional valve	Japan SMC
07	Speed increase relay	Japan SMC
08	Filter	Japan SMC
09	Wire rope	American Smurfs	Aviation equipment
10	Sealing ring	American Parker
11	Proximity switch	Omron Japan
12	PLC	Taiwan Delta
13	Geared motor	Taiwan Takasaki
14	The electromagnetic valve	TaiWan AirTAC
15	Cylinder	STNC
