Welcome to visit

Automatic Liquid Filling Capping and Labeling Machine Line Plastic Bottle Filling Line for Water Bottles

US$4,980.00
1-2 Pieces
US$4,500.00
3-8 Pieces
US$3,600.00
9+ Pieces

Basic Info.

Model NO.
FK-GCQ-6
Type
Liquid Filling Machine
Automatic Grade
Fully Automatic
Material Type
Liquid
Filling Valve Head
Multi-Head
Feed Cylinder Structure
Single-Room Feeding
Dosing Device
Magnetic Pump
Filling Principle
Pressure
Packaging Container Lifting Structure
Pneumatic Lifting
Structure
Linear
Packaging
Bottle
Packaging Material
Plastic
Filling Speed
900~3600PCS/H
Packing Accuracy
Packing Weight 100g or Less Deviation Plus or Min
Filling Volume
10-2000ml
Marketing Type
Ordinary Product
Transport Package
Wooden Case
Specification
1925mm× 716mm× 1777mm
Trademark
FK SPEEDA
Origin
Dongguan
HS Code
8422309090
Production Capacity
900~3600PCS/H

Product Description

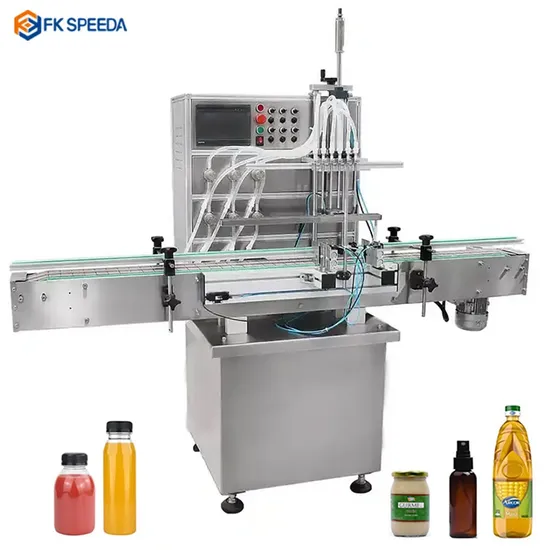

FK-GCQ-6 Automatic 6 heads Magnetic pump Filling Machine 1.6 heads Magnetic pump Filling Machine. The filling head and flow meter is made of 316L stainless steel, Can hold a variety of corrosive low viscosity particle free liquids.
2.Normally packaged in wooden case or wrapping film, also can be customized. 3.The machine is suitable for all liquid, sauce, gel except the liquid as thick as dough.
Product Parameters
Parameter Data
Filling material Materials other than powders, particles and very viscous liquids
Filling Tolerance ±l%
Filling Capacity(ml) 80 ~ 1L(can customize)
Suit bottle size(mni) According to your need;
Speed(bottle/min) One filling head : 175~250;(Determine how many filling heads are used in the machine according to your production and
requirements)
Quantitative way Pistion
Machine Size(mm) 1800*900*1700
Voltage 380V/50(60)HZ;(Can be customized)
Power(KW) 600
N.W (KG) 300
G.W(KG) 335
Additional functionality Anti-drip, anti-splash and anti-wire drawing; High precision; Will not corrode
