Deepsea Dse890 Mkii Advanced Remote Monitoring of Gensets

Product Details

Product Description

Product Description
DEEPSEA Dse890 MKII Advanced Remote Monitoring of Gensets

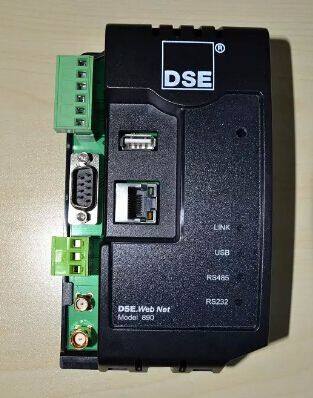

DSE890 MKIIDSEWebNet® / IoT Gateway - 4G (GSM/Ethernet)The DSE890 MKII is an Ethernet/4G gateway device that enables compatible DSE controllers to be monitored remotely via DSEWebNet® software or third-party MQTT brokers.
REQUIRES - Combined 4G LTE (Main & Diversity) and GPS Antenna - 020-1053 if 4G Signal is Needed.
Unit also fully compatible with 2G & 3G.
PRODUCT HIGHLIGHTSKEY FEATURES
KEY BENEFITS
4G Connectivity.
Provides a high-speed connection for data transfer on remote sites.
Supports 2G & 3G.
Multiple support for flexibility.
Configure device to be monitored using DSEWebNet® software.
Users can configure individual sites using the online version of DSEWebnet®. Once sites are configured the DSEWebNet® web interface and app can both be used for control & monitoring.
Configure device to be monitored using third-party MQTT brokers.
Provides the flexibility to allow DSE controllers to be monitored remotely via third party software.
DIN rail & chassis mount.
Provides flexible mounting options.
Multiple users can access each DSE890 simultaneously.
Allows multiple DSEWebNet® connections to monitor the same site simultaneously.
Main & diversity aerial connection inputs.
Enables the signal strength to be increased by adding a second aerial to the installation.
SPECIFICATIONDC SUPPLYCONTINUOUS VOLTAGE RATING
8 V to 36 V continuous
CRANKING DROPOUTS
Able to survive 0 V for 100 mS, providing supply was at least 8 V before dropout and supply recovers to 8 V. This is achieved without the need for internal batteries
MAXIMUM OPERATING CURRENT
GSM 755 mA at 12 V
376 mA at 24 V
GSM & GPS 755 mA at 12 V
376 mA at 24 V
MAXIMUM STANDBY CURRENT
GSM 207 mA at 12 V
113 mA at 24 V
GSM & GPS 207 mA at 12 V
113 mA at 24 V
COMMUNICATIONSUSB(Single DSE Controller)
RS485 (Multiple DSEControllers)
Ethernet (Multiple DSEControllers)
CAN* (Single DSE Controller)

---
