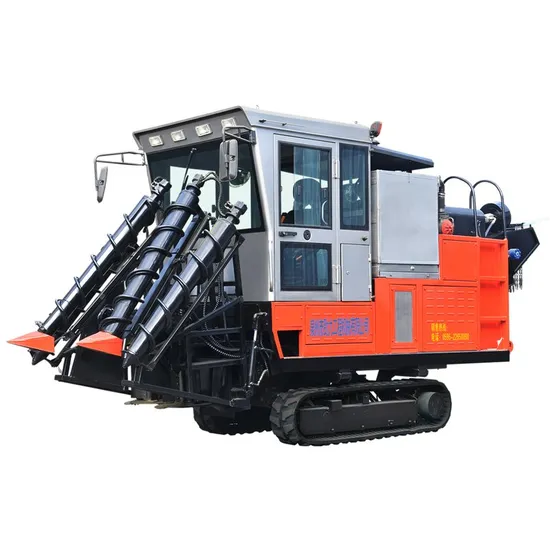

Combine Whole Stalk Sugarcane Harvest Cutting Machine Sugar Cane Harvester

Product Description

Whole Stalk Sugarcane Harvester Welcome see working on job site
Combine Whole Stalk Sugarcane Harvest Cutting Machine
Sugar Cane Harvester

Range of Operation of Sugarcane Harvester
Model	4GL-1
Structural Pattern	Crawler Tpye
Harvest Way	Whole bar type
Rows of harvest	1
Adapted Row Spacing	0.85-1.1 meter
Travel Driving Tpye	Hydraulic drive

Theoretical speed	5.5 km/ hrs
Machine Weight	5900 kg
Min. ground clearance	320 mm
Adjustable Range of cutting device	400 mm
Matched Power
Engine model	4M5LU23/ 0956E

Rated power	95.6
Rated rotation speed	2300

Dimensions ( length x width x height )
Operation condition	6300 x 1930 x 2930 mm
Travel position	6250 x 1930 x 2930

Parameter of Crawler Type
Spacing of crawler	1120 mm
The vertical horizonal distance between the first wheel center to tension wheel	1600 mm
Averaged ground pressure	6.2 kpa
Pitch distance	55 mm
Pitch Number	82 mm

Width of Crawler

300 mm

Cutting Device
Structural model	double disc cutting
Max. diameter of rotation	555 mm
Rotated speed	840 r/min
Drive type	hydraulic drive
Quantity	2
Blade	150 x 80 x 3
Quantity	4

As the professional level of users is getting higher and higher, in order to meet the customer's demand for products,
Jingong Machinery constantly innovates and upgrades the products, and optimizes and improves the products from
the professional perspective of future development.
Since its establishment in 1997, Jingong has always been adhering to the business philosophy of "survive by quality,
rely on efficiency through management", put customers first, and develop and manufacture products that are popular
in the market.
We are Quanzhou Jingli Engineering And Machinery Co., Ltd.,one of the professional excavator manufacturers
in China, with 20 years of excavator manufacturing experience.Our company mainly produces
wheeld excavator, crawler excavator, grapple excavator, railway machine, sugarcane combine harvester.

---
