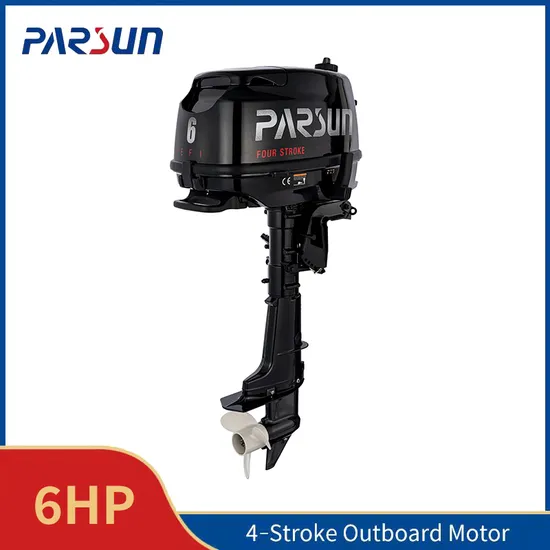

Parsun 6HP 4-Stroke Outboard Motor F6abms

Product Description

PARSUN 6HP PORTABLE OUTBOARD MOTOR SHORT or LONG SHAFT 4 STROKE OUTBOARD
New lightweight single cylinder PARSUN F6 four stroke with a manual starter and tiller handle. Enhanced features include a larger shift handle, toggle clamp and throttle grip than in other motors of the same class. Low vibration rubber mounts are fitted between the powerhead and bottom cowling and at the base of the tiller handle, and a balance weight on the tiller handle effectively reduces vibration of the same. Front and back, large easy grip carry handles makes these engines easily transportable and, very importantly, the engine can be stored on either side or on its front without leaking engine oil due to PARSUN's original oil leak prevention system. This means you will no longer have to worry about oil leakage when carrying the engine in the trunk of your car. A wet sump system with oil lubrication pump, as used in higher-end models, provides more reliability in engine lubrication. An auto decompression device fitted to the camshaft makes the manual starter much lighter to pull. A small, auxiliary prime pump is fitted to the fuel pipe before the carburettor in the cowling. By ensuring delivery of fuel to the carburettor, the engine can be started smoothly even after long-term storage. A DC 12 volt-6 amp alternator can be optionally fitted to provide electricity if required.

	Model	F6ABML	F6ABMS
Item
Overall length	mm(in.)	718(28.2)
Overall width	mm(in.)	390(15.4)
Overall height	mm(in.)	1177(46.3)	1050(41.3)
Transom height	mm(in.)	508(20.0)	381(15.0)
Weight	kg	28	27
Fullthrottle operating range	r/min	4500~5500
Maximum output		4.4KW(6HP)@5000r/min
Idling speed(Neutral)	r/min	1450~1550
Engine type		OHV
Cylinders		1
Displacement	cm 3	148
Bore × stroke	mm(in.)	64.0×46.0(2.52×1.8)
Ignition system		CDI
Control system		Tiller control
Starting system		Manual start
Gear positions		Forward-Neutral-Reverse
Gear ratio		2.08(27/13)
Trim and tilt system		Manual tilt
Fuel tank capacity	L	Within 1.3
Maximum fuel consumption	L/h	2.3
Oil sump capacity	L	0.6
Gear oil capacity	cm 3	100
Propeller options	in.	3-7.8"x9"
*Propeller choice will vary by boat size and application.
*B=Back control(Tiller control)\F=Front control(Remote Control)\M=Manual start\
W=Electric start+Manual start\S=Short shaft\L=Long shaft

---
