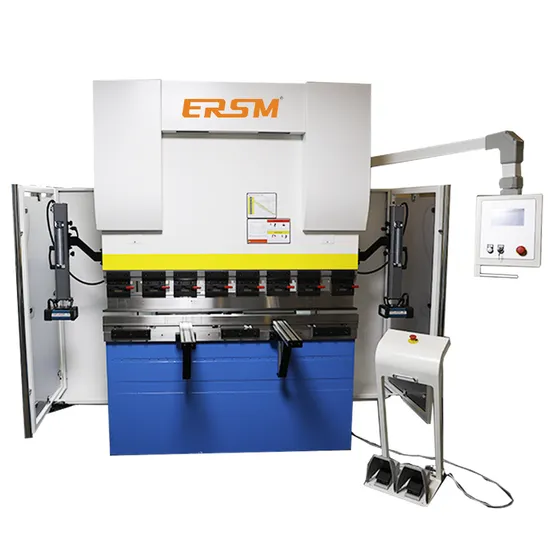

Distance Between Uprights 1200mm Dual Servo Hybrid Hydraulic Press Brake

Product Description

Product Features
• The servo oil-electric hybrid system uses two servo motors and servo pump to control the left and right cylinders
• The servo motor controls the output flow of the oil pump according to the program setting, and then controls the movement speed and position of the slider
• The whole process has no throttling phenomenon
• The distribution of oil is basically on demand, without throttling loss, which can realize the real sense of energy saving
• The application of servo motor greatly reduces the energy consumption of the system in the working gap
• Excellent energy saving effect, energy saving rate of 70%
Product Parameter

Model	EHP-3512		EHP-5016
Force	350KN		500KN
Max. Bending Length	1250mm		1650mm
Distance Between Uprights	900mm		1200mm
Opening Height	385mm		385mm
Throat Depth	200mm		300mm
Cylinder Stroke	120mm		120mm
Main Power	4.4KW		2*4.4KW
Oil	70L		2*70L
Upper Beam Speed	Approaching Speed	300mm/s	Approaching Speed	300mm/s
	Working Speed	0-20mm/s	Working Speed	20mm/s
	Returning Speed	250mm/s	Returning Speed	250mm/s
Back Gauge Speed X Axis	Stroke	450mm	Stroke	450mm
	Max. Speed	450mm/s	Max. Speed	450mm/s
Back Gauge Speed R Axis	Stroke	140mm	Stroke	200mm
	Max. Speed	75mm/s	Max. Speed	75mm/s
Machine Dimensions	1650*1210*2245mm		2180*1340*2385mm
Weight	2900kg		4300kg
