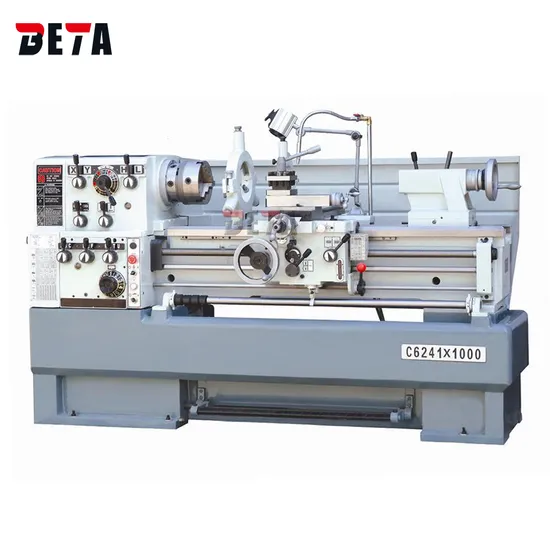

C6241 C6246 Chinese Universal Gap Bed Steel Metal Manual Lathe
1.The spindle system is high in rigidity and accuracy.
2.The design of the main drive is optimized and the gears in the headstock are precision ground.
3.The noise of the machine is low.
4.The machine can turn about 200 kinds of metric, inch, module and D.P. threads.
5. Automatic stopping device is used to realize automatic stop for the machine of a certain length workpiece, which is safe and reliable pedal braking device providing quick and effective stop while operating.
| Model | C6241/1000 | C6241/1500 |
| Max. swing over bed | Φ410mm |
| Max. swing over cross slide | Φ220mm |
| Max. swing over gap | Φ640mm |
| Valid length of gap | 165mm |
| Distance between centers | 1000mm/1500mm/2000mm |
| Width of bed | 300mm |
| Max.section of tool | 25×25mm |
| Max.travel of cross slide | 285mm |
| Max.travel of compound rese | 128mm |
| Spindle bore | Φ58mm |
| Spindle nose | D1-6 |
| Taper of spindle speed | MT6 |
| Range of spindle speed | 12 steps 25-2000r/min |
| Leadscrew pitch | 6 mm or 4T.P.I. |
| Range of metric longitudinal feeds range | 0.031-1.7mm/rev (42 kinds) |
| Range of inch longitudinal feeds | 0.0011"-0.0633"/rev (42 kinds) |
| Range of metric cross feeds | 0.014-0.784mm/rev (42 kinds) |
| Range of inch cross feeds | 0.00033"-0.01837"/rev (42 kinds) |
| Range of metric threads | 0.1-14mm (41 kinds) |
| Range of inch threads | 2-112 T.P.I.(60 kinds) |
| Range of Diametrical pitch | 4-112 D.P. (50 kinds) |
| Range of module pitches | 0.1-7 M.P.(34 kinds) |
| Dia. of tailstock sleeve | 60mm |
| Travel of tailstock sleeve | 130mm |
| Morse taper of tailstock sleeve | MT4 |
| Power of main motor | 5.5kw |
| Power of coolant pump | 0.1kw/ 3PH |
| Overall diamension(L*W*H) | (1000mm):2200x1080x1340mm |
| (1500mm): 2750x1080x1340mm |
| Packing size(L*W*H) | (1000mm):2250x1120x1620mm |
| (1500mm):2800x1120x1620mm |
| N.W/G.W | (1000mm): 1580/1850kg |
| (1500mm): 1750/2050kg |
