Cermet Tip Saw Grinder for Sharpening Multi-Surface

US$999.00-50,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
TFN800
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Plunge Cylindrical Grinder
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Color
White and Black
Power
5kw
Voltage
380V, 50Hz
Weight
3680kg
Accuracy
0.01-0.03mm
Grinding Speed
6~30s/Tip
Certificate
SGS
Input Voltage
380V, 50Hz
Item
Cermet Tip Saw Grdinder
Name
Saw Blade Sharpener
Transport Package
PE Bag and Wooden Case
Specification
2500*1800*2200mm
Trademark
TORSEL
Origin
China
HS Code
8460310000
Production Capacity
1000PCS/Year

Product Description

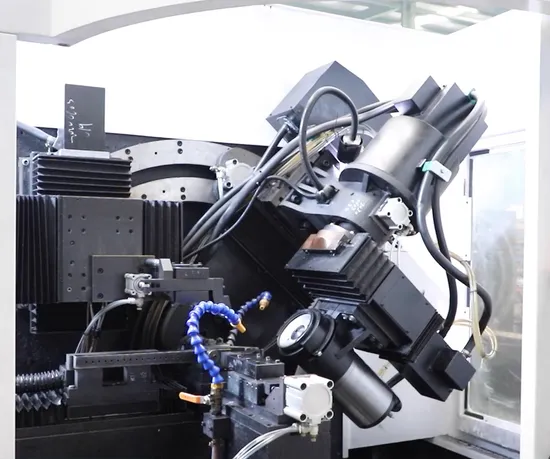

TFN800 Features and Advantages
Able to grind cermet and tct saw blade.(mainly for cermet tip grinding). Saw blade diameter is up to 810mm. It is multi-functional, able to grind tooth top/negative face chamfer/concave/chip breaker slot. TF800 and NSB800 (side) form a production line.
Features:
1. Multifuctional --sharpening tooth top/negative face chamfer/concave/chip breaker slot
2. CNC servo motor for precise positioning
3. Built-in program for ease of use.
4. User friendly interface panel with touch screen
5. tooth skipping, automatic compensation function available
6. special treated cast iron base and imported parts.
7. Ready for both water and oil coolant
Adavantages:
1. Easy operation: CNC with friendly interface panel, various tooth shapes available, all parameters can be set directly and stored automatically. Portable electrical handwheel for elaborate actions
2. High accuracy: <0.015mm or even better. this machine is with the highest precision
3. Good stability: use specially treated cast iron base, no deformation, low vibration,long term use. 4. High efficiency: 6~30s/tip adjustable grinding speed.
Three grinding wheels in one set
2. Machine Parameters
Saw diameter 120~810mm
Hook angle 25°~ -30°
Top angle 8°~ 30°
Top chamfer angle 45°~ -45°
Face chamfer angle 30°~ -30°
Bore diameter 12~120mm
Pitch 2-80mm
Top wheel size Φ125mm*Φ32mm*16mm
Notch wheel size Φ125mm*Φ32mm*9mm
Face wheel size Φ150mm*Φ32mm*14mm
Wheel speed 2500~3500RPM
Grinding speed 6~30s/tip
Power 5KW
Dimension 2500*1800*2200mm
Weight 3680kg

3. Machine Details
Interface panel with touch screen
Portable electrial handwheel
Hebei Tuosi Mechanical Equipment Co.ltd is a professional saw blade manufacturer, specializing in producing circular&band saw blade tooth sharpening machine, circular sawing machine and other machine related to saw blade production. We have dozens of machines for you to choose from, including precision and economy models, to meet your different needs for quality and price. Just let us know your needs, tailored solution is available.

Exhibition show
FAQ
1. What products do we have?
Four categories saw blade sharpening machine:
1. economic type: normal accuracy, normal saw blade diameters, lower price, suitable for tct blade.
2. accurate type: high accuracy, large diameter saw blade can be processed, suitable for tct blade.
3. sharpening machine with robot: robot auto picking and putting saw blade, suitable for mass production of tct blade.
4. cold saw blade sharpening machine: highest accuracy, suitable for cermet tipped saw blade.
Except saw blades sharpening machine, we also supply Measuring Projector, Side Runout Inspection Machine, Radial Runout Inspection Machine, Automatic Belt Polishing Machine, CNC Router Bit Grinding Machine, Automatic Tooth Seat Grinding Machine,etc.
2. What are the advantages of our circular saw blade sharpening machine?
1) long service life: using quality cast iron base treated by high temperature tempering and vibration aging. no deformation and low vibration.
2) easy operation: CNC with friendly interface panel, all parameters can be set directly and stored directly. A machine can store up to 100 sets of data.
3) high efficiency: adjustable grinding speed, robot auto load, one person can operate several machines at the same time.
4) high accuracy: use quality machine components to realize high accuracy.
5) competitive price: price is very competitive for such good quality.
