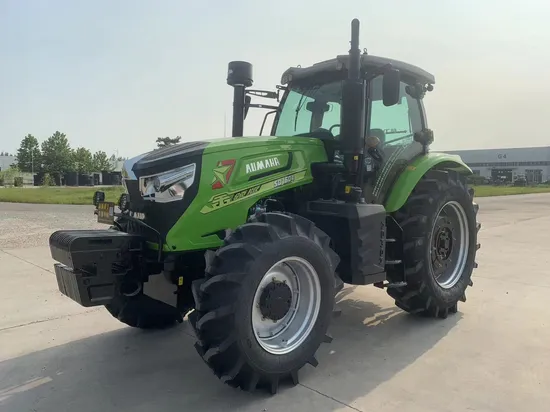

150HP Agricultural Tractor

US$1,000.00 1 Piece (MOQ)

Basic Info.

Application Field
Agriculture, Livestock, Aquaculture, Fisheries, Forestry
Farming Policy
Dry Cultivating Machinery
Power Source
Diesel
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Traction
Drive Type
Gear Drive
Arbor Configuration
Vertical Shaft
Certification
ECE, CE
Color
Red
Warranty
1 Year
Usage
Farm Tractor, Garden Tractor, Lawn Tractor
Drive Wheel
4WD
Emission Standard
Euro III
Fuel
Gas / Diesel
Service Life
6-10 Years
Size
Large
Condition
New
Advantage
Price
Transport Package
Seaworthy Packing
Specification
ISO, CE
Trademark
huanhai
Origin
Shandong, China
Production Capacity
20000 Units Per Year

Product Description

Tractor model: LT404
Pattern: 4 x 4 (four-wheel drive)
Dimensions: 3514 x 1750 x 2130mm
Spread of axies (mm): 1924
Front wheel tread (mm): 1250
Rear wheel tread (mm): 1200-1500 (commonly used 1300)
Smallest gully (mm): 325
Agronomy gully (mm): 375
Changes radius (mm): Unilateral brake: 3.4
Unilateral does not apply the brake: 4.1
Structure quality: 1890
Smallest use quality: 2080
First disposes: 144
Latter disposes: 360
Fixed force of traction (KN): 12
Engine model: 490BT
Demarcation power (KW): 29.4
Coupling: 10 inch dry list function or double-acting
Gear box: 4 x (2 1) keeps off the composition type meshing wrap to shift gea
Speed range: 2.4-31.9
Central rotation: Screw round bevel gear pair
Differential device: Two planetary gears, closed type
Differential lock: Plug type
Final transmission: Planet gear type
First driving axle
The entire seal bevel gear type (four-wheel drive type uses)
Transfer case
The straight tooth cylindrical gears (four-wheel drive type uses)
Front wheel tire specification: 8.3-20
Trailing wheel tire specification: 12.4-28
Model 504 554
Overall dimension(LxWxH) 3770X1620X2130 3875X1635X2145
Wheelbase(mm) 1990 2010
Front-wheel tread(mm) 1265 1265
Rear-wheel tread(mm) 1200~1500 1200~1500
Min. Ground clearance(mm) 330 330
Min. Turning radius(m)(not apply the brake with single side) 4.3 4.3
Gear(front/rear) 12/12
(8/4 8/8 optional)
12/12
(8/4 8/8 optional)
Speed range(forward/backward) 34.02-2.55/
29.82-2.24
34.02-2.55/
29.82-2.24

engine
Model A498BT-6A A4K41T55-002
type In-line,water-cooling,four stroke
power 36.8 40.4
R o tating speed 2400 2400
Specific fuel consumption(g/kW@h) ≤245 ≤245
Tire size(front/rear) 8.3-20/13.6-28 8.3-20 /13.6-28
Hydraulic lift capacity(kN) 610mm from suspension point 8.28 9.1
Driving output axis type Postposition,semi-independent
Driving output axis
turning speed(r/min)
540/760,or 540/1000 optional
