Vertical Lathe, Max Turning Diameter 1600mm (VL1600)

Product Description

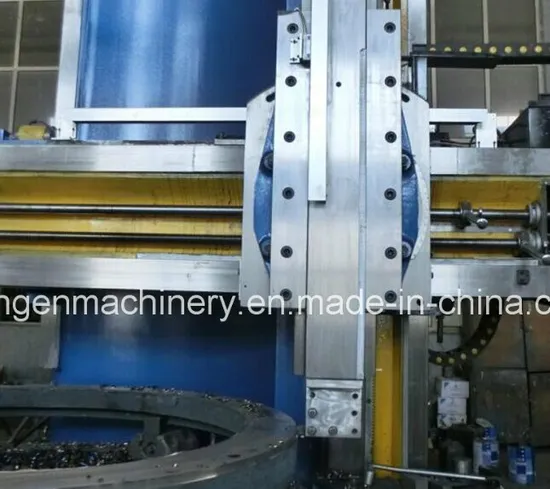

[1] Multifunctional single column vertical lathe with large turning capacity, stable and rigid construction and high machining efficiency for rough or fine turning on internal or external cylindrical surfaces, taper surfaces, end surfaces, grooving, boring, drilling and reaming etc.;
[2] Hydrostatic zinc alloy guide ways inlaid on the worktable features low friction between moving parts and high load capacity for the worktable. The vertical lathe spindle in the worktable is supported by a double-row cylindrical roller bearing with high-precision tolerance class P5 and a tapered bore to eliminate effectively the radial clearance between the spindle and the table plate and ensure the spindle to rotate precisely for achieving high precision and stable machining at a high speed;
[3] Main parts of this single column vertical lathe, including beds, base, worktable, beam, vertical sliding rest, side tool box, feed box, main drive gearbox, are made of high-strength and high-rigidity resin sand castings processed with thermal stress relief aging treatment. Small cast iron parts of this single column lathe are hardened at a high temperature. All the steel parts on the single column vertical lathe are thermal refined to ensure a long-time and dependable service;
[4] All gears in the gearbox of this single column vertical lathe are made of chrome alloy steel and have been hardened and precision ground for a high-precision transmission and low operation noise;
[5] The beam is clamped and unclamped by a drift with hydraulic pressure;
[6] Components in the hydraulic system are from domestic or abroad famous manufacturers to ensure their reliable performance;
[7] Lubrication system automaticall lubricate the beam and other moving parts simultaneously at specified time;
[8] The moving parts of the vertical lathe are protected by a full range of security chain and interlock;
[9] Electrics are controlled by OMRON / LS brand PLC;
[10] Guideways on this single column vertical lathe plastic coated to ensure high wear resistance;
[11] High-precision digital readout (DRO) system is optional to be equipped with this vertical lathe;
[12] The vertical lathes are builted by ISO 9001, CE licensed manufacturers.

Specifications	Unit	VL1600
Max.turning diameter of vertical tool post	mm	1600
Max.turning diameter of side tool post	mm	1400
Table diameter	mm	1400
Max.turning height	mm	1200/1400/1600
Max.weight of workpiece	T	5
Rotate range of table	r/min	5-160
Stage number of variable speed		16
Feeding range of vertical and side tool post	mm /min	0.8-86
Feeding stage number of vertical and side tool post		12
Max.cutting force of vertical tool post	Kn	25
Max.cutting force of side tool post	Kn	20
Max.total cutting force	Kn	40
Max.torque of table	Kn.m	25
Level stroke of vertical tool post	mm	915
Vertical stroke of vertical tool post	mm	800/1000
Level stroke of side tool post	mm	630
Vertical stroke of side tool post	mm	900
Beam stroke	mm	650/850/1100
Moving degree limit of vertical tool post	degree	±30
Vertical and side Tool rest rapid traverse speed	m/min	1.8
Beam lifting speed	m/min	0.44
Sectional dimension of cutter bar(length*width)	mm	40*40
Main motor power	Kw	30
Feeding motor power	Kw	1.3/1.8
Overall size(L*W*H)	mm	2660*2660*3698
Weight (about)	T	12.8/14/14.8

---
