. 37 Sample positions.
. 28 Reagent positions.
. 48 Reaction cuvettes.
. 200 Tests per hour.
. Probe anti-collision function,liquid level dectection function.

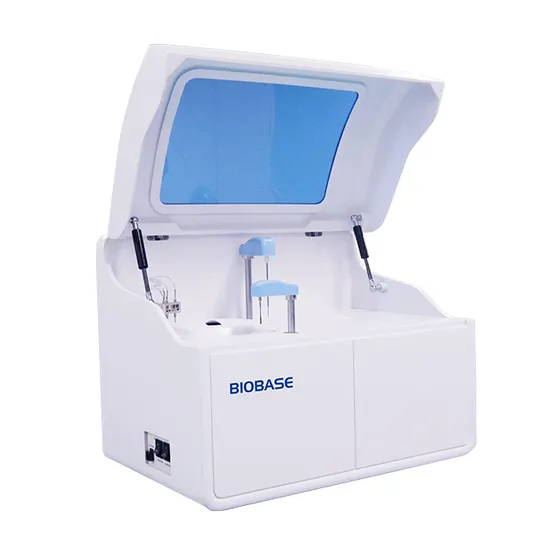

Model
| BK-200
|
Overall
Performance
| Throughput
| 200 Tests/hour
|
Analysis Method
| End-point, Fixed-time, Rate(Kinetic)
|
| |
|
Sample & Reagent System
| Sample Positions
| 37 sample positions
|
Reagent Position
| 28 reagent positions
|
Sample Volume
| 2-70µl
|
Reagent Volume
| 20-350µl
|
Probe
| coating, with anti-collision function, liquid level detection function
|
Probe Washing
| Automatic washing interior and exterior
|
Reagent Cooling
| Refrigerated tray with independent switch
|
Reaction System
| Temperature Control
| 37+0.2ºC, real-time monitoring
|
Cuvettes
| 48 reusable cuvettes,optical length 6mm
|
Mixer Probe
| Independent stirring
|
Washing
| Automatic cuvettes washing
|
STAT function
| YES
|
Optical System
| Light Source
| 6V/10W halogen lamp
|
Spectrophotometry
| Post-spectral spectrophotometry
|
Wavelength
| 340,405,450,480,505,546,570,600,,630,700,750,800nm
|
Absorbance
| 0-3.0Abs
|
Calibration & QC
| Calibration
| Linear:K factor, 1-point ,2-point and multipoint linear Non-Linear:Spline,Polygon, Index, Ogarithm, Logit-4P, Logit-5P
|
Quality Control
| Real-time QC, Westgard multi rule, Cumulative Sum Check,Twin Plot(2D)
|
Data Management
| Software
| Windows 7/8/10 , 32or 64bit
|
LIS System
| Bi-direction,support HL7 protocol
|
Interface
| LAN port access
|
| | Printer
| External,multiple reporting mode available
|
Working Conditions
| Power Supply
| AC220V±10%,50/60Hz, 110V±10%,60Hz, 300W
|
Temperature
| 15~30ºC
|
Water Consumption
| Deionized water:<5L/H
|
Humidity
| 40-85%
|
Size & Weight
| External Size (W*D*H)
| 625*425*460mm
|
Net Weight
| 36kg
|
Package Size (W*D*H)
| 728*530*884mm
|
Gross Weight
| 55kg
|
