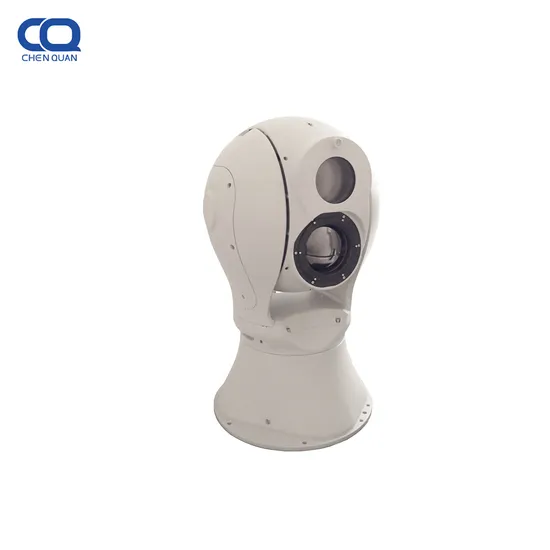

| Model | CQ-ZS50-CTVC630C30-2186 |
Effective Distance
(DRI) | Vehicle (2.3*2.3m) | Detection: 18km; Recognition: 6km; Identification: 3km |
| Human (1.8*0.6m) | Detection: 8km; Recognition: 3km; Identification: 1.5km |
| Ship (20x5m) | Detection: 32km; Recognition: 18km; Identification: 9km |
| Drone ( for DJ4 Size) | Detection: 5km(thermal), 5.2km(HD), Tracking: 2km |
| Thermal Sensor | Sensor | Cooled Focal Plane Array (FPA) MCT HgCdTe detector |
| Effective Pixels | 640x512, 50Hz |
| Pixel Size | 15μm |
| NETD | ≤20mK |
| Spectral Range | 3.7 ~ 4.8μm, MWIR |
| Thermal Lens | Focal length | 30-300mm 10X F5.5 |
| FOV (640*512) | 18.2°×14.6°~1.8°×1.5° |
| Angular radian | 0.5~0.05mrad |
| Digital Zoom | 1~8X Continuous Zoom (Step 0.1) |
| Visible Camera | Sensor | 1/1.8'' Star Level CMOS, Integrated ICR Dual Filter D/N Switch |
| Resolution | 1920(H)x1080(V) |
| Frame Rate | 32Kbps~16Mbps,60Hz |
| Min. Illumination | 0.05Lux (Color), 0.01Lux(B/W) |
| SD Card | Support |
| Visible Lens | Lens Size | 11~860mm 78X |
| Image Stabilization | Support |
| Defog | Support |
| Focus Control | Manual/Auto |
| Digital Zoom | 16X |
| Image | Image Stabilization | Support Electronic Image Stabilization |
| Enhance | Stable operational temperature without TEC, starting time less than 4 seconds |
| SDE | Support SDE digital image processing |
| Pseudo Color | 16 pseudo color and B/W, B/W inverse |
| AGC | Support |
| Ranging Ruler | Support |
| PTZ | Accuracy | 0.02°, pulse precision motor, digital angle measurement sensor servo (0.002° Option) |
| Rotation | Pan: 0~360°, tilt: -90~+90° |
| Speed | Pan: 0.01~80°/S, Tilt: 0.01~60°/S |
| Preset | 255 |
| Enhance | Fan/Wiper/Heater attached |
| Split | Upper and lower split design, can be packaged and transported, combined quickly |
| Zero Setting | support the setting of pan and pitch zero |
| Gyro Stable (option) | Stability accuracy-2mrad (RMS), two-axis gyro stable, shake≤±10° |
| Position Time | less than 4s |
| Angle Feedback | support real-time / query return and positioning functions of horizontal and pitch angles |
| Interface | Ethernet | RS-485(PELCO D protocol, baud rate 2400bps),RS-232(option),RJ45 |
| Protocol | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ONVIF |
| Video Output | PAL/NTSC |
| Power | DC48V |
| Compression | H.265 / H.264 / MJPEG |
| Environmental | Operate Temp | -25ºC~+55ºC(-40ºC optional) |
| Storage Temp | -35ºC~+75ºC |
| Humidity | <90% |
| Ingress Protect | IP66 (IP67 Option) |
| Housing | PTA three-resistance coating, Seawater corrosion resistance, Aviation waterproof plug |
| Wind resistance | spherical, anti-shake, anti-33m/s strong wind |
| Anti-fog/salty | PH 6.5~7.2 (No less than 700 hours) |
| Power | 250W (Peak)/ 50W (Stable) |
| Dimension | Ф280mm×430mm |
