Agricultural Machinery Cultivator Active Harrow Tooth Left and Right for Maschio

Product Description

Tiller Blade for Gill 6 in Agricultural machinery Ploughing and cultivating

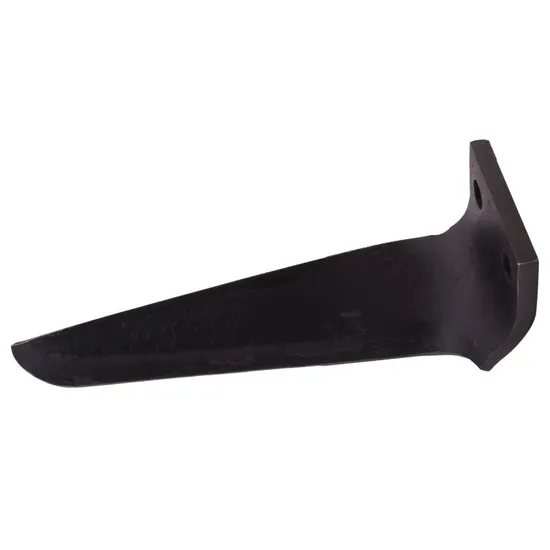

Name: power harrow tine/ Vertical tiller blade Replacement
ltem:65mn Tillage unit
Use on Ploughing and cultivating readjusting and loosening soli
This left/right blade has 1 to 2 holes and can be installed in a general purpose rototiller. This cultivated blade can be added to the tungsten carbide layer to increase wear resistance as an additional option
Detailed Photos
Product Parameters
1. Steel body: At SKYMECH, we use 65Mn and 30MnB5 alloy steel, whose hardness can be as high as 42-50 HRC. The choice of material is related to the replacement used.
2. Tungsten carbide particles: The crushed raw material tungsten carbide has a double-grain structure and high wear resistance. We can add a tungsten carbide layer to the blade to increase the life of the blade. If you have specific needs, please contact us.
Tips:In general, gravel more land will put higher requirements on the wear resistance of the blade, so the use of 65Mn material blade may be more suitable, because 65Mn material has higher hardness and wear resistance.
For the land with more sand, because the sand does not cause greater wear to the blade like gravel, but it will put forward requirements for the strength and toughness of the blade, at this time, the use of 30MnB5 material blade may be more suitable, because 30MnB5 material has higher strength and certain toughness, and can better resist the impact and extrusion on the sandy land.
However, it should be noted that when choosing the actual blade material, it is also necessary to take into account the specific use environment, work intensity, budget and other factors, and make the most appropriate choice after comprehensive consideration.

Company Profile

Material.:	Alloy steel+(Tungsten Carbide)
MOQ.:	1000PCS
Packing.:	Plastic box+Iron Cage
Application.:	Farming,Forestry,wooden chiper Recycling etc.
Why choose us.:	1. 20 years experience in design and production
	2. The factory starts from machining, and the product quality requirements are high
	3. Support sample design

Packaging & Shipping

---
