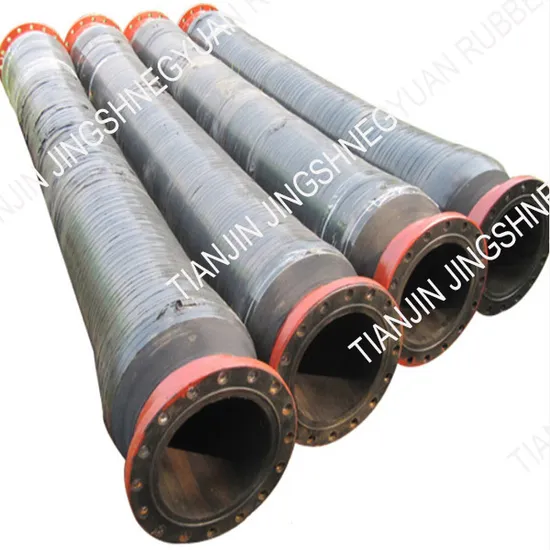

Manguera High Abrasion Slurry Suction Hose with Flange Floater for Suction of Water, Mud and Stone

Product Description

Product Description
Dredging suction hoses resists the most severe cutting and abrasive action, We can produce heavy-wall hose and high-flexibility tubes up to 60 feet in length, build hose sizes ranging from 4 inch ID up to 60inch ID.
With the features of flexibility, stability, vibration damping or resistance to tough handling, special ends or no ends . all types of material handling applications like slurry, mud, Silica Sand, Metal, Dry Cement or hard handling materials in the industry of mining, dewatering, tailings, fly ash, waste and refuse etc.
The dredge hose is used for offshore dredging industry .
The principal applications for the hoses are estuary clearance, beach replenishment or large land reclamation and other civil engineering projects.
The large diameter suction & delivery hose is easy to be connected with the pipeline to reduce the oscillation caused by the waves to make sure smooth flowing in the pipeline.
The floating dredging rubber hose is used for dredging engineering with matching with Dredger
Detailed Photos

Product Parameters
Flexible Dredging Suction Hose Specifications:
1) Construction
Abrasive resistant rubber lining, Spring steel helix wire with multiple synthetic textile reinforcement provides for full vacuum, kink resistance and vibration dampening.
Outer cover with excellent ageing resistance and corrosion resistance
Gimbals specifically designed to exacting specification for dredgers.
With ends of flanges ANSI, PN10 or other quick connections like Camlocks
2) Suction hoses can withstand the working pressure of 10bar,20bar,25 bar or more, sizes: 3inch ,4inch,6inch,8inch,10inch,12inch,14inch,16inch,20inch
3) Dredge hose in almost limitless variations based on customer specific needs
4) Single foam floatation casing, preventing water absorption
5) High abraisionm , easy installation,good adhesion,long service life ,easy assembly.Availability of Flexible Rubber Hoses with dredging

Nominal Size	Working Pressure		Burst pressure		Length	Connection
Inch	PSI	BAR	PSI	BAR	M
3"	150 /300	10/20	450/600	30/60	5.8 /11.8	flange /bauercopling /camlocks
4"	150 /300	10/20	450/600	30/60	5.8 /11.8
6"	150 /300	10/20	450/600	30/60	5.8 /11.8
8"	150 /300	10/20	450/600	30/60	5.8 /11.8
10"	150 /300	10/20	450/600	30/60	5.8 /11.8
12"	150 /300	10/20	450/600	30/60	5.8 /11.8
14"	150 /300	10/20	450/600	30/60	5.8 /11.8
16"	150 /300	10/20	450/600	30/60	5.8 /11.8
20"	150 /300	10/20	450/600	30/60	5.8 /11.8
24"	150 /300	10/20	450/600	30/60	5.8 /11.8

NOTE: All The Sizes Of Industrial rubber Hose Can Be Customized As Your Requirments

Packaging & Shipping
Application
Dredging suction hoses are converying all types of material handling applications like slurry, mud, Silica Sand, Metal, Dry Cement or hard handling materials in the industry of mining, dewatering, tailings, fly ash, waste and refuse etc.For pumpstations pump solutions , dewatering pumps , pumps , pump rentals , dewatering , clock dewatering , watermanagement , waste water management , mining
Customers Visit
Exhibition
Our Company
Tianjin JingShengYuan Rubber and Plastic Products Co., Ltd is a manufacturer and exporter, which is located in Tianjin high-tech industry Garden, As expert in the filed of hoses over 15 years, with rich experiences, we serve a wide of range industries incuding offshore engineering, oil industry, tunneling, water treatment,chemical, mining and quarrying, aerospace, shipbuilding, food, drink and pharmaceutical, brewing, machine manufacturing, agriculture and garden. Our main products: Dredging Hose, Floating Hose, Marine LPG Hose, Marine Oil Delivery Hose, Oil Suction & Discharge Hose, chemical hose,Tank Truck Hose, Cement Hose, Sand Blast Hose, Air/Water Hose.
We serve both domestic as well as overseas companies, you can count on us to deliver high quality products, solid advice and fast and reliable service at a reasonable price.
Our Advantage
1.Professional manufacturing factory
2.Good quality&service control system, produced by skilled workers
3.Designing and researching hose assemblies according to customers'requirements
4.Timely and effective delivery
5.Flexible payment method.
FAQ
Q1. What's the advantages of your rubber hoses?
Our rubberhose have been certified by API and ISO quality management system. With over 10 years' exporting experience, our products have got a good reputation of "good quality and reasonable price",sells far to Europe, America, Singapore, India, Middle East, Myanmar.
Q2. Can you produce rubber hoses with my own brand?
Yes, we have been offering OEM services since the beginning of our factory was built, so we got rich experience in this service.
Q3: How about your products quality?
Our every rubber hose is under a rigorous prosess and test for every step
Q4. How long does my order take to be delivered?
Big orders by sea usually takes 30 days, if your requested quantity is not very big, within 10 days can get any corner of the world with air freight. So it generally depends on the quantity of your order and our storage.
Q5. What about your production capicity?
We are OEM factory,we have more than 30 produtional lines and top class equipments and machines to assure our bulk quantity production,usually we can supply 300000meters within one month.

---
