500L 1000L 2000L Milk Cooling Tank for Small Dairy Farm

US$3,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
KQ-1000L, KQ-2000L
Process
Mild Processing
Power Source
Electric
Certification
CE, ISO9001
Automatic Grade
Automatic
Application
Milk
Customized
Customized
Name
500L 1000L 2000L Milk Cooling Tank for Small Dair
Tank Application
Cooling and Storage Fresh Milk
Compressor
USA Copeland
Refrigerant
R404 / R22
Milk Transportation Tank
Also Provided
Outside Shape
Vertical and Horinzontal
Milk Tank Material
Stainless Steel 304/316
PU Insulation Wall Thickness
70mm
Working Electricity
3phz
Mixer
Equiped
Working Life
More Than 10 Years
Delivery
15 Days After Get Your Advance Payment
Outlet
Outlet with Butterfly Valve
Spare Parts
Available
MOQ
1set
Transport Package
Wooden Box
Specification
SANITARY, FOOD GRADE
Trademark
KAIQUAN
Origin
Shanghai China
HS Code
8479820090
Production Capacity
500 to 10000 Set / Year

Product Description

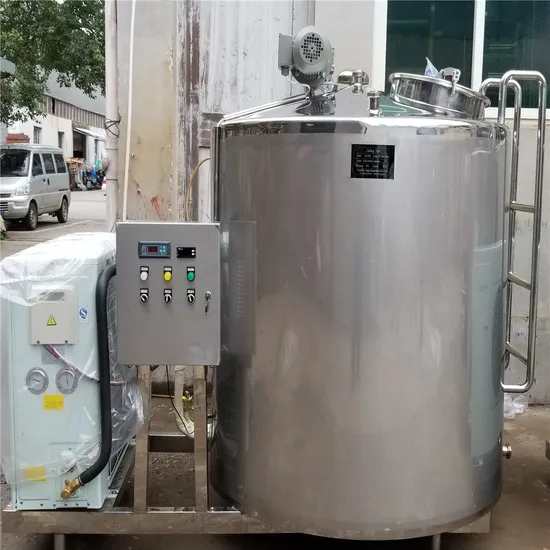

500L 1000L 2000L Milk cooling tank for small dairy farm
Milk cooling & storage. Milk cooling & storage cooling tank and control unit. Rapid and efficient milk cooling is essential for preserving milk quality .
500L 1000L 2000L Milk cooling tank for small dairy farm
Type KQ-0.5T
Vertical type		 KQ-1T
Vertical type		 KQ-2T
Laying type		 KQ-3T
Laying type		 KQ-5T
Laying type		 KQ-6T
Laying type		 KQ-8T
Laying type		 KQ-10T
Laying type
Capacity(L) 500 1000 2000 3000 5000 6000 8000 10000L
Refrigerating Output(W) 9000 9000 15000 22000 37000 38000 55000 74000
Refrigerating Fluid(R) R22 R22 R22 R22 R22 R22 R22 R22
Insulating Property ≤1ºC/4h ≤1ºC/4h ≤1ºC/4h ≤1ºC/5h ≤1ºC/5h ≤1ºC/5h ≤1ºC/5h ≤1ºC/6h
Agitator Speed 36r/min 36r/min 36r/min 36r/min 36r/min 36r/min 36r/min 36r/min
Power (Kw) 3.8 3.8 5.9 7.5 10.5 11 13 19.2
Voltage 220V/50Hz,3phases 380V/50Hz,3phases 380V/50Hz,3phases 380V/50Hz,3phases 380V/50Hz,3phases 380V/50Hz,3phases 380V/50Hz,3phases 380V/50Hz,3phases
Dimension(mm) 1800*1200*1500 1800*1200*1500 3400*1550*1750 3600*1700*1900 3900*2050*2150 4500*2050*2150 6300*2050*2250 8000*2100*2400
Weight(Approximately) 0.6T 0.6T 0.75T 0.9T 1.1T 1.3T 1.8T 2.05T
Unit Price:

SS304 MILK COOLING TANK
producing milk cooling tanks, collection centres, tubular coolers, milking machine components, pasteurisers, ice water
Adopting internationally-advanced technology of the 1900's it cools by circular and vertical wall. The fully automatic control system makes whole process of observation available. The cooled raw milk can reach rapidly needed temperature of 4~5 and keeps constant, which can prevent the generation of bacteria and make raw milk as Agrade cream.
The adopted imported compressor features high performance, energy saving, full seal and protection system that prevents damage due to overload. Also fitted are high / low liquid level control system and automatic cyclespray and agitating device.
500L 1000L 2000L Milk cooling tank for small dairy farm .
