48 Carrier Wire Braider Machine China Best Quality

Product Description

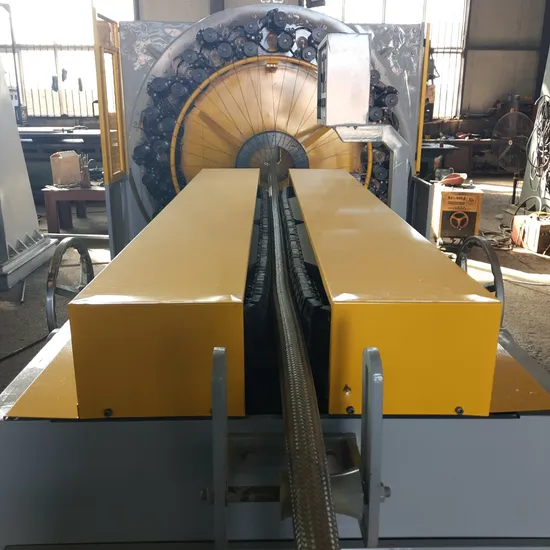

48-carrier wire braiding machine

Product description of wire braiding machine
* Braiding ID/OD of the hose: 30-75mm
* Rotation speed of the carrier:7.25r/min.
* Braiding angle:54°44″
* Pitch distance:66-166mm
* Pulling speed:29-72m/h
* No.of carriers:48 carriers
* Motor power:Y132M1-6 7.5KW
Machine description
Wire braiding machine
The wire braiding machines we can make as follows:
Wire diameter:0.3mm to 0.8mm
No.of spindles:16 to 112 spindle braiding machine
ID of the braids:4mm to 600mm
Material of wires:stainless steel,galvanized carbon steel, copper wire
Technical data
Single decker steel wire braiding technical data

Description	Braiding diameter(mm)	Carrier Rotation Speed (r/min)	Carrier Rotation Speed (r/min)	Braiding Pitch (mm)	Pulling Speed M/H	No.carrier	Motor Power KW
GBG16-carrier wire braiding machine	4-10	24.8	54°44"	9-22	13-33	16	Y100L1-4 2.2KW Y100L2-4 3.0KW
GBG20-carrier wire braiding machine	6-16	19.8	54°44"	13-29	15-34.5	20	Y100L1-4 2.2KW Y100L2-4 3.0KW
GBG24-carrier wire braiding machine	10--31	14.25	54°44"	22-69	21-66	24	Y100L1-4 2.2KW Y100L2-4 3.0KW
GBG36-carrier wire braiding machine	15--45	10	54°44"	33-100	22-66	36	Y100L2-4 3.0KW Y100L2-4 3.0KW
GBG48-carrier wire braiding machine	30--75	7.25	54°44"	66-166	29-72	48	Y132M2-6 5.5KW Y112M-4 4.0KW
GBG64-carrier wire braiding machine	51-110	4.56	54°44"	67-240	18.6-102	64	Y160M-6 7.5KW Y112M-4 4.0KW
GBG72-carrier wire braiding machine	80-150	4.25	54°44"	170-330	44-83	72	Y160M-6 7.5KW Y112M-4 4.0KW
GBG96-carrier wire braiding machine	150-300	2.75	54°44"	240-750	50-120	96	Y180L-6 15KW Y160M-6 7.5KW
GBG112-carrier wire braiding machine	115-400	2.778	54°44"	310-800	42-130	112	Y132M1-6 4.0KW Y180L-6 15KW
GBG128-carrier wire braiding machine	200-400	2.088	54°44"	500-1300	72-300	128	Y132S-4 5.5KW Y180L-6 15KW

Double decker steel wire braiding technical data

Description	Braiding Diameter (mm)	Carrier Rotation Speed (r/min)	Braiding angle	Braiding Pitch (mm)	Pulling Speed M/H	Carrier NO.	Motor Power KW
GBG-2S16	4-10	24.8	54°44"	9-22	13-33	32	Y100L1-4 2.2KW Y100L2-4 3.0KW
GBG-2S20	6-16	19.8	54°44"	13-29	15-34.5	40	Y100L1-4 2.2KW Y100L2-4 3.0KW
GBG-2S24	10--31	14.25	54°44"	22-69	21-66	48	Y100L1-4 2.2KW Y100L2-4 3.0KW
GBG-2S36	15--45	10	54°44"	33-100	22-66	72	Y100L2-4 3.0KW Y100L2-4 3.0KW

Product showing
128-carrier single decker wire braiding machine
96-carrier single decker wire braiding machine
24-carrier double decker steel wire braiding machine

Customer visiting&training
96 carrier wire braiding machine

Workshop Show

FAQ for steel wire braiding machine
1. Why choose us as your supplier?
We are most professional in steel wire braiding machine with more than 30 years of experience
2. What wires can you machine braid?
A. Stainless steel wire
B. Copper lad steel wire
C. Copper wire
3. What application of your braiding machine?
Popular for both rubber hose and metal hose manufacturing

We need to know the following information to quote you correct machineries:
1. What outer diameter of the hose you want to braid?
2. Structure of the braid?
3. How many carriers/bobbins you need for braiding your hose? For instance, 24, 36,64,72,96,128 carrier, etc..

---
