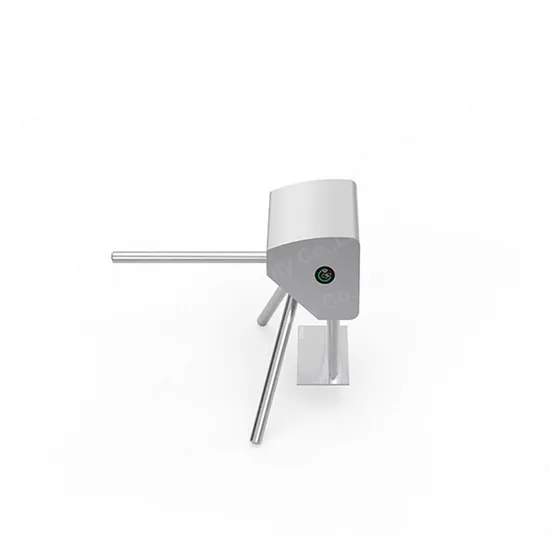

Shopping Mall Fingerprint NFC Tripod Turnstiles Gate 360-Degree Rounded Waist Height Barrier Doors Mechanism

Product Description

Shopping Mall Fingerprint NFC Tripod Turnstiles Gate 360-Degree Rounded Waist Height Barrier Doors MechanismProduct DescriptionTripod Turnstiles RS 218-1 also called: Tripod Gate,Waist Height Turnstile,Three Rollers Turnstile,Three Arms Turnstile.Tripod Turnstile RS 218-1 full body housing is made of 2.0mm thickness 304# stainless steel.Tripod Turnstiles consisit of three bars,electromagnetic,mechanism,electric circuit,led lamp,hydraulic damper.
Waist Height Turnstiles RS 218-1 RFID,Face Recognition,Fingerprint,Coins Toll,Biometrics,Barcode Nfcetc.Waist Height Turnstile is the most economic pedestrian access control.Waist High Turnstile with standard fire interface,arm can drop down for evacuation even power is not cut off when fire alarm triggered.Waist Height Turnstiles anti-passback,when arm rotates 61 degree,people cannot reverse back.Three Arms Turnstile with hydraulic damper,low impact sound and high durbility:the 4 arms can rotate in one or two directions,controlled by an access control system or push button at a reception desk.
Function
Tripod turnstiles are compact and cost-effective entrance/exit security solutions.
The body is made of brushed stainless steel which is robust, rigid, anti-rust, waterproof and durable.
It is ideal for both indoor and outdoor settings.
It has standard relay signal, which can be integrated with any kind of third-party access control system (e.g.: RFID,
Fingerprint and Biometric reader device).
It has sufficient space, which can mount with any type of external device.( e.g.: Display, Counter, Reader, Push button,
Card collector, Coin insert, Barcode/QR reader, Wheel). In case of emergency, tripod turnstile horizontal arms will drop down automatically to allow free passage when power off.
Anti-tailing function: only one person passes at one time. It is suitable for areas with general pedestrian traffic. (e.g.: Park, School, Factory, Library, Cinema, Gym).Feature
Long-life performance, high operation dependability and fast response.
The whole system runs smoothly, low noise, no mechanical impact.
Single directional or Bi-directional is selectable.
Automatic reset function: turnstile arm will lock automatically
within 5s (can be setting) if passenger delay to entry.
When power is off, arms will drop down automatically, which is
complying with fire safety requirements.
LED indicator (red × means no entry; green →means entry). Easy to install and maintain.
3-year warranty support. Product Parameters

Product Name	Tripod Turnstile,Waist Height Turnstile
Moduel No.	RS 218-1
Brand	Bloccante
Size	bridge:1200*300*980mm;vertical:420*330*980mm
Material	304 stainless steel, acrylic
Channel width	510mm
Thickness of the cabinet	1.5mm-2.0mm
Traffic direction	one-way traffic/two-way traffic;
Passing speed	25~30 persons/minute
Opening method	ID/IC card swiping and other readers to verify opening, button opening, etc.
Opening signal	dry contact signal
Life	not less than 5 million times
Power	30-60w
Applicable temperature	: -20~75ºC

Detailed Photos
Application

---
