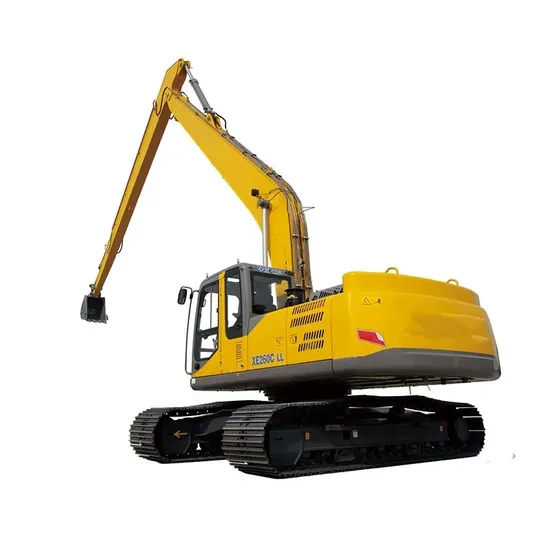

Earth-Moving Machinery Xe260cll 26 Ton Hydraulic Crawler Long Arm Excavator with Cheap Prices for Sale

Product Description

XE260CLL hydraulic excavator with super long reach is a new self-developed product by adopting the latest technology and the advanced technology of similar products abroad. The maximum digging radius is 18 meters, which can be widely used in working conditions restricted by ground environment such as river dredging, bank protection, slope construction and subway construction.
XE260CLL hydraulic excavator has more power, lower fuel consumption and stronger working performance. It can be widely applied to farmland water conservancy, river dredging, municipal construction and small mine construction. It can also realize different operations such as digging, breaking and dismantling, and the adaptability of working conditions is further strengthened.
The whole machine adopts imported 128.5kW high-power engine, proprietary and special technology, featuring low speed and high torque, high-pressure injection, stronger power and better fuel economy. New high-efficiency main pump is fully upgraded, with large displacement, which is 7% higher than that of the previous generation. Product Parameters

Model		Unit	XE260CLL
Operating weight		Kg	27500
Bucket capacity		m³	0.4
Engine	Model	/	CC-6BG1TRP-08
	Rated power/speed	kw/rpm	128.5/2100
	Maximum torque/speed	N.m	637/1800
	Displacement	L	6.494
Main performance	Travel speed(H/L)	km/h	6.0/4.0
	Swing speed	r/min	12.1
	Gradeability	°	≤35
	Ground pressure	kPa	40.8
	Bucket digging force	kN	76.3
	Arm digging force	kN	44.5
	Maximum tractive force	kN	193
Hydraulic system	Main pump	/	/
	Rated flow of main pump	L/min	2×246
	Main safety valve pressure	MPa	34.3/37
	Travel system pressure	MPa	34.3
	Swing system pressure	MPa	23
	Pilot system pressure	MPa	3.9
Oil Capacity	Fuel tank capacity	L	400
	Hydraulic tank capacity	L	240
	Engine oil capacity	L	25
Appearance size	Overall length	mm	13900
	Overall width	mm	3390
	Overall height	mm	3360
	Width of platform	mm	2830
	Track length	mm	4640
	Overall width of chassis	mm	3390
	Track shoe width	mm	800
	Wheel base of crawler	mm	3842
	Track gauge	mm	2590
	Counterweight clearance	mm	1050
	Min. ground clearance	mm	470
	Min. tail swing radius	mm	2985
	Track height	mm	927
Working scope	Max. digging height	mm	13800
	Max. dumping height	mm	11414
	Max. digging depth	mm	14915
	Maximum depth cut for 2240mm(8 ft) level bottom	mm	-
	Max. vertical wall digging depth	mm	13917
	Max. digging radius	mm	18258
	Min. swing radius	mm	6740
