China Super High Speed Automatic Steel Wire Nails Making Machine

Product Description

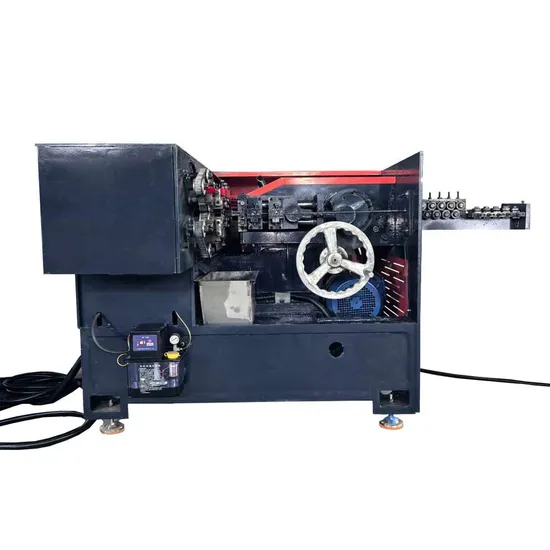

TOPS-ZD90/130 Type automatic high speed nail making machine
It is specially designed to produce high quality iron nails, so that every nails made is high quality products.
Thoroughly resolve the defect of high reject rate and slow speed of traditional nails making machine.
So as to reduce the labor and site costs, so that your production costs significantly reduced, more high quality requirements at home and abroad, high-profit orders.

Model No.	TOPS-ZD90	TOPS-ZD130
Wire Diameter	2.0mm-3.5mm	3.0-4.5mm
Nail Length	30mm-100mm	70-130mm
Working Speed	750pcs/min	600pcs/min
Motor Power	5.5 KW	7.5 KW
Machine Size	1900x1250x1100mm	2240x1300x1300mm
Pay off stand Size	1500x900x450mm	1500x900x450mm
Electrical cabinet Size	850x400x1030mm	850x400x1030mm
Weight	2600kgs	3600kgs

Our Advantages
1. The production capacity is three times that of traditional nail making machines, which greatly reduces power consumption and saves electricity costs.
2. The factory has a higher production capacity per unit area, easily increasing the output value by three times.
3. There are no waste nails, which effectively improves the efficiency of nail rolling and reduces 35%-45% of nail rolling workers.
4. One worker can operate 10 machines at the same time: reducing nailing labor by 50%-70%.
5. Patented design, dual-mode dual punch
-- The nail cap is formed twice to eliminate the quality problems of skewed cap, large and small cap, and irregular nail cap.
-- It can realize small wire diameter and large nail cap, breaking the limitation of traditional small nail cap.
6. The unique high-precision wire feeding and retracting design is matched with the active wire pay-off frame and the efficient nail cutter swing rod structure, with short stroke, low wear and high precision.
7. The efficient and streamlined structural design is extremely simple to operate and maintain.
No skilled technical workers are required. Ordinary workers can operate and maintain it after a simple demonstration.
8. Because the nails produced are of high quality and stable, the nail factory can receive more orders with high profits but strict requirements on nail quality.
9. The whole machine is made of high-quality materials, and the core components are made of high-quality imported materials, which is incomparable to ordinary nail making machines.
10.Unique active lubrication system
Unique and efficient oil circuit design, precise lubrication, active oil supply, so that the machine has a longer service life; the promised service life is more than 25 years, and the conservative estimated service life is more than 30 years.
Detailed Photos

The machine's active safety system and nail quality monitoring system:
-- 5 sensors are distributed in various parts of the machine, which are used to monitor operational safety and nail quality
-- In case of safety emergencies, the machine will automatically shut down to avoid accidental injuries
-- In case of machine operation problems or nail quality problems, such as insufficient lubricating oil, missing nails, long and short nails, bent nails, blocked nail outlets, etc., the machine will have an alarm or shut down. At the same time, the operation panel will also display the problem, which is convenient for the operator to check in time.
The screen will tell you what the problem is and you can easily fix it.
This sensor detects whether the nail container is full.

Spareparts
-- Fewer consumable parts (nail cutters, nail molds, belts, punches), longer service life of consumable parts, lower price
-- 20 million nails to replace nail cutters, 40 million nails to replace nail molds; nail cutters and nail molds can be repaired
-- Belt service life 4--6 months
-- Greatly reduce the cost of use, no need to frequently replace spare parts;
-- Spare parts replacement is very simple and convenient, ordinary workers can also quickly replace spare parts
Packaging & Shipping
If shipping by FCL,wrapped with plastic film,load in 20ft container.
If shipping by LCL,will be packing with wooden cases.
Delivery time: 25-30 days after receive advanced payment.
Our Service
Before-Sales:
1. The most suitable machine model will be recommended based on client's nail size, to meet client's production requirement.
2.Most competitive price
3. Welcome clients to visit us on site or by video call.
After-Sales:
1. Spare parts Service and lifetime technical support; Engineer are available to install and debug the machine oversea if need.
2.Quality Guaranteed
3. 24H on-line service.
Related Products
straight line wire drawing machine nail polishing machine coil nail making machine
Please click here to contact me!!!
Company Profile
Shijiazhuang Tops Hardware Manufacturing Co.,Ltd.
We are a professional manufacturer engaged in production, sale and service of nails making machine, coil nails making machine, wire drawing machine, galvanized wire production line, annealing furnace, wire mesh machinery, welding wire, welding electrodes, coil nails, galvanized wire and related products. We have rich production experience, strong technical power, advanced production equipment and perfect after-sales service system.
We are located in Shijiazhuang city with convenient transportation access. In order to improve the level of management, satisfy the demand of our customers, we have obtained ISO9001 quality certificates. "Good reputation, Efficient management and Excellent service" make us take up an advantageous position in the world markets. Our products have been exported to Europe, South America, North America, Middle East, Africa and other parts in the world.
Welcome all old and new friends visit us, let us create brighter future together !
