Basic Info.
Automatic Grade
Automatic
After-sales Service
Provide
Product Name
Sawmill Line
Application Wood
Hardwood and Softwood
Max Log Cutting Dia
600mm
Log Locking
Pneumatic(3units)
Specification
4000*1450*1600mm
Product Description

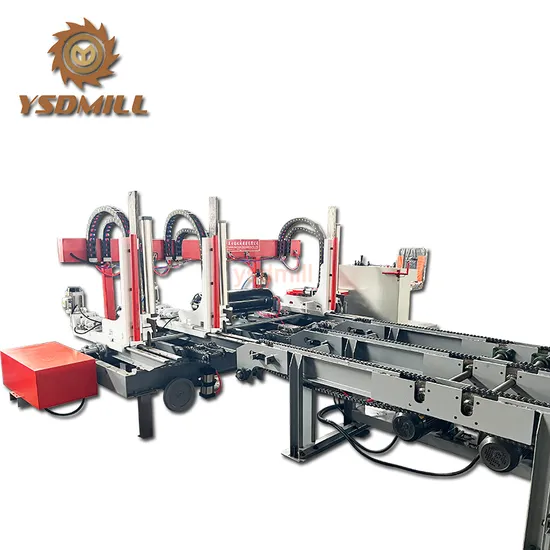

Product Description The Automatic Vertical Sawmill with Log Carriage is the newest design which can use in the forest or farm and DIY woodworking place. The professional sawmilling systems is easy to install and easy to operate, can help you do more and spend less.
It is suitable for the scale production of sawmill and is widely used in wood processing in the original forest area. Our machine is suitable for large wood processing plants. Ideal equipment for wood processing line.
| Model | YAP30-600 |
| Max sawing dia | 600mm |
| Max sawing length | 3000mM(standard) |
| Log loading | Pneumatic(3units) |
| Log turning | Pneumatic(3units) |
| Moveable headblocks(Taper) | Pneumatic(2units) |
| Cutting speed | Adjustable by frequency converter |
| Cutting measurement | Automatic |
| Carriage walking motor | 2.2kw |
| Measurement motor | 3kw |
| Voltage | 380V/50HZ/3phase |
| Overall size | 4000*1450*1600mm |
| Weight | 2500kg |
| Custom made service | Provided |
1. Log loading deck
Forklift or wheel loader put log on chain conveyor,then transport log to saw carriage.
2. Vertical band saw machine
Cast-iron body
Precision saw wheel
We will recommend suitable model according to your log specification.
3. CNC Log carriage
Touch scree control
Automatic log locking
Automatic log turning
Cutting speed adjustable
4. Wood plank output conveyor
Collect wood board/plank/timber after cutting
High working efficiency, labour cost saving
Automatic Log loading deck,Transport log to log carriage machine Automatic log turning, log locking
High quality motor, stronger power, longer service life Control system,Touch screen+PLC,Language:English
Packing & Delivery
Company Profile
FAQ
Q: Are you a trading company or a manufacturer?
A: We are manufacturer.
Q: What types of woodworking machinery does YSDMILL offer?
A: YSDMILL offers a comprehensive range of woodworking machinery, including woodworking band-sawing machines, woodworking log carriages, and other auxiliary equipment.
Q: Does YSDMILL offer custom-made solutions for wood processing?
A: Yes, absolutely! We understand that every woodworking project is unique, and we take pride in providing personalized wood processing line solutions tailored to meet your specific requirements.
Q: How to know which model is suit for our request?
A: Send us the length and diameter specification of your wood, then we will recommend you the suitable machine.
Q: How about your delivery time?
A: For our standard vertical/horizontal band saw, we have it in stock. For the customized sawmill equipment we need 10-30days to production.
Q: How does YSDMILL handle after-sales service and support?
A: We are committed to customer satisfaction and offer comprehensive after-sales support. Our team provides installation assistance, maintenance services, and readily available spare parts to ensure the smooth operation of our machinery.
>>
