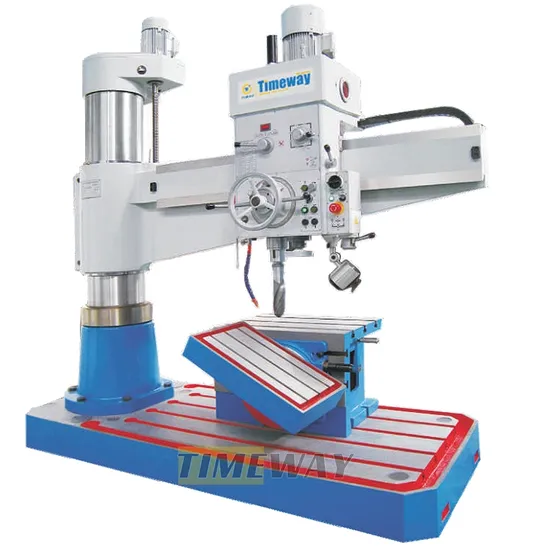

High Accuracy Radial Drilling Machine with Rotation Worktable

Product Description

Radial Drilling Machine

Product Description
- Infinitely variable speed control
- Large work area
- Inverter motor spindle
- Rigid design and powerful performance Product Parameters

SPECIFICATION	UNIT	RD-616B
Max drilling diameter (45# steel)	mm	62
Max drilling diameter (HT200 cast iron)	mm	72
Max tapping diameter (45# steel)	mm	M46
Max tapping diameter (HT200 cast iron)	mm	M52
Distance from spindle axis to column	mm	350-1600
Spindle box horizontal travel (manual)	mm	1250
Distance from spindle nose to base	mm	350-1250
Max spindle travel	mm	315
Diameter of column	mm	350
Spindle taper	-	MT5
Spindle speed steps	steps	stepless
Spindle speed range	r/min	38-2000
Spindle feeding steps	steps	8
Spindle feeding range	mm/min	0.06-1.00
Arm lifting speed	m/min	1.2
Arm rotation angle	°	±180°
Spindle moving distance of each dial revolution	mm	122
Main motor power (variable-frequency motor)	kw	4
Arm lifting motor power	kw	1.5
Oil pump motor power	kw	0.75
Machine weight (without working table)	kg	3800
Machine dimension (LxWxH)	mm	2490x1050x2600

Detailed Photos

Accessories

Standard accessories:	Optional accessories
Box table, Drill chuck arbor, Morse taper drill sleeve, LED working lamp, Coolant system, Frequency inverter, Lifting motor, Hydraulic motor, Height adjustable protective cover, Tools & tool-box, Operation manual	Rotation worktable, Quick change collet, Machine Vise, Keyless drill chuck.

Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?A: 1 . High quality with competitive price;2 . Professional R&D team and 25 years export experience;3 . Exported more than 60 countries;4 . CE, ISO Certificates;5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);6 . 12 months quality warranty;7 . Oversea engineers available for problem resolving;Q: Do you have QC or any safety standards for your machinery?A: yes, we have established a highly strict quality control department to guanrantee good quality.Q: What's the MOQ?A: 1 set (Only some low cost machines will be more than 1 set )Q: What about the payment terms?A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;(2) Irrevocable LC at sight;(3) Western Union, MoneyGram, etc.Q: How about the warranty?A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

---
