Single Shaft Paddle Mixer Grain Mixer Coffee Bean Mixer

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
TWD
Certification
CE
Condition
New
Mixing Drum Shape
Circular Groove
Working
Shear Mixer
Name
Single Shaft Paddle Mixer Grain Coffee Bean Mixer
Mixer Type
Powder Mixer
Stirring Type
Spiral
Layout Type
Horizontal
Operating type
Continuous Operating
Transport Package
Plywood Wooden Carton
Specification
CE
Trademark
DAHEPACK
Origin
China
HS Code
84743900
Production Capacity
30units/Month

Product Description

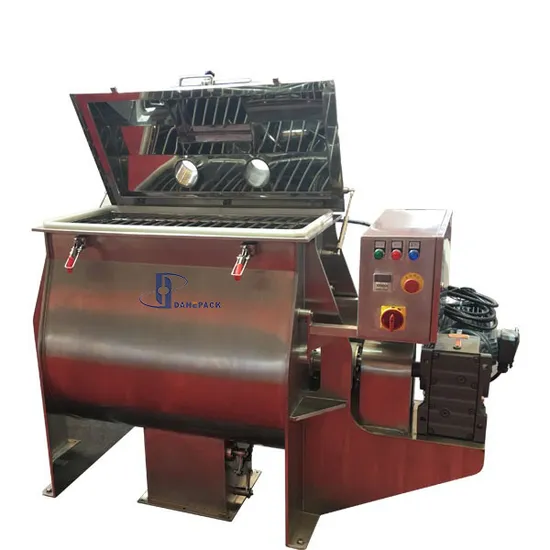

single shaft paddle mixer grain mixer coffee bean mixer
Descriptive abstract
single shaft paddle mixer grain mixer coffee bean mixer is suitable use for powder and powder,granule and granule or add a little liquid to mixing.it is widely applied in nuts,beans,feed or other kinds of granule material, Inside of the machine have different angle of blade thrown up the material thus cross mixing.
Main features
1,High active :Rotate reversely and throw materials to different angles,mixing time 1-3min
2,High uniformity:Compact design and rotated shafts be filled with hopper, mixing uniformity up to 99%
3,Low residue:Only 2-5mm gap between shafts and wall, open-type discharging hole
4,Zero leakage: Patent design and ensure the rotating axle & discharing hole w/o leakage
5,Full clean:Full weld and polishing process for mixing hopper, w/o any fastening piece like screw,nut.
6,Nice profile: the whole machine is made by 100% stainless steel to make its profile elegant except bearing seat.

Main Technical Date
Model
TDS-200
TDS-300
TDS-500
TDS-1000
TDS-1500
TDS-2000
Effective Volume
200L
300L
500L
1000L
1500L
2000L
Fully Volume
280L
400L
680L
1280L
1820L
2450L
Loading factor
0.6-0.8
0.6-0.8
0.6-0.8
0.6-0.8
0.6-0.8
0.6-0.8
Turning Speed
53rpm
53rpm
45rpm
45rpm
39rpm
39rpm
Total Weight
450kg
680kg
980kg
1350kg
1650kg
2300kg
Total Power
4kw
5.5kw
7.5kw
11kw
15kw
17.5kw
Length(L)
1630
1850
2030
2550
2900
3200
Width(W)
850
950
1000
1230
1330
1460
Height(H)
1100
1180
1330
1570
1760
1880
Radius(R)
277
307
377
450
485
534
Power Supply
3P AC208-415V 50/60Hz
