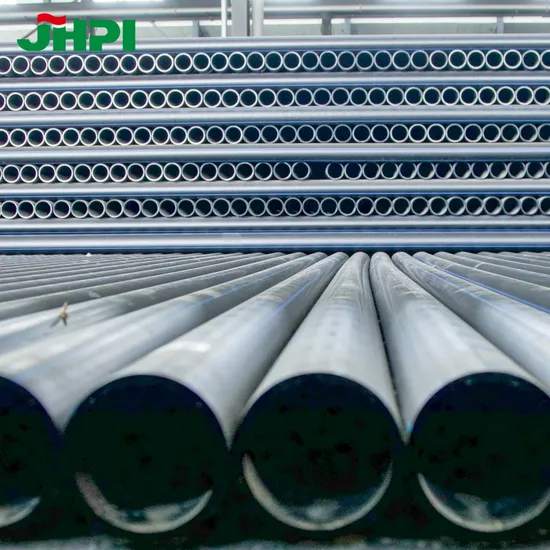

Jhpi Custom 20mm-160mm High Pressure Low Pressure PE Water Supply Pipe HDPE Pipe

Product Description

Product Description
Jhpi custom 20mm-160mm high pressure low pressure PE water supply pipe HDPE pipe
HDPE Pipe Connection:
Socket fusion, butt fusion joint, electric fusion joint, flange joint
HDPE Pipe Application:
1.Urban area water-supply work system. Large diameter PE pipe is healthy and non-toxic and more suitable for urban water supply main conduit and buried tube.
2.Replace cement tube, iron pipe and steel tube. Applicable for renovation project and does not need large area excavation, PE pipe can be widely used in old town of pipe network reconstruction.
3.Industrial materials transmission pipe. Chemical industry, chemical fiber, food, forestry, pharmacy, light industry and paper-making, metallurgical and other industrial raw material conveying pipe.
4.Landscaping water supply network. As landscaping project needs lots of water supply pipes, PE pipe is the best choice for its toughness and low costs.
5.Sewage discharge pipes. PE pipe have unique corrosion resistance, can be used in industrial waste water, sewage discharged pipe, low costs and maintenance costs .
6.Ore, mud transfers. PE pipe has high resistance to stress and wear resistance, can be widely applied in conveying ore, coal ash and river bait-casting mud.
7. Agricultural irrigation pipe. PE pipe has the merits of great flow and good impact resistance, it is the ideal tool for agricultural irrigation.
HDPE Pipe Features:
1. Long working life. Minimum 50 years life under normal conditions.
2. Hygiene. PE pipe are nontoxic, without the composition of heavy metal additives. No scale, not breeding germ, no second pollution to the potable water.
3. High resistance to attack from various types of chemicals.
4. Smooth internal surface. Extremely low friction coefficient. Improved capability for media to pass through. Excellent abrasive resistance.
5. Good flexibility, high resistance to impact. Resistance to earthquake and twisting,brittle temperature could be -70°C.
6. Light weight, easy to transport, convenient installation.
7. Unique electric fusion welding and butt welding make the joints stronger than the material, to guarantee a safe and reliable joint.
8. Simple welding technique, convenient installation. Total cost is low for the installation.
9. Polyethylene water pipes are produced in black, black with blue stripes and blue etc Product Parameters

DN (mm)	SDR26	SDR21	SDR17	SDR13.6	SDR11
	0.6Mpa	0.8Mpa	1.0Mpa	1.25Mpa	1.6Mpa
	en	en	en	en	en
	mm	mm	mm	mm	mm
20					2.3
25					2.3
32			2.3	2.4	3.0
40		2.3	2.4	3.0	3.7
50	2.3	2.4	3.0	3.7	4.6
63	2.5	3.0	3.8	4.7	5.8
75	2.9	3.6	4.5	5.6	6.8
90	3.5	4.3	5.4	6.7	8.2
110	4.2	5.3	6.6	8.1	10.0
125	4.8	6.0	7.4	9.2	11.4
140	5.4	6.7	8.3	10.3	12.7
160	6.2	7.7	9.5	11.8	14.6
180	6.9	8.6	10.7	13.3	16.4
200	7.7	9.6	11.9	14.7	18.2
225	8.6	10.8	13.4	16.6	20.5
250	9.6	11.9	14.8	18.4	22.7
280	10.7	13.4	16.6	20.6	25.4
315	12.1	15.0	18.7	23.2	28.6
355	13.6	16.9	21.1	26.1	32.2
400	15.3	19.1	23.7	29.4	36.3
450	17.2	21.5	26.7	33.1	40.9
500	19.1	23.9	29.7	36.8	45.4
560	21.4	26.7	33.2	41.2	50.8
630	24.1	30.0	37.4	46.3	57.2

Jinghua Plastic Industry Co., LTD. (formerly known as Langfang Jinghua Plastic Technology Co., LTD., renamed Jinghua Plastic Industry Co., LTD., in April 2016) was approved by the National Development and Reform Commission, Planning Bureau, Land Bureau, Environmental Protection Bureau and other departments in 2009, registered and established in November 2010, the first phase of construction was completed and put into operation in 2011, and the second phase of construction was completed and put into operation in 2015.
The company is located between the three major cities of Beijing, Tianjin and stone, close to Xiongan New Area, west of Daguang Expressway, east of Beijing-Bao Expressway and Langcang Expressway, located in the 106 National Highway 117 kilometers of Xinglong Palace Town industrial functional area, covers an area of 100 acres, convenient transportation, geographical location is extremely superior.
1.Q: What is the Raw material ?
A: 100% virgin raw material.
2.Q: What is your MOQ?
A: As customers' requests.
3.Q: why choose us?
A: We are a professional manufacturer with competitive price, good quality and fast delivery time.
4.Q: How to buy the product?
A: Send email to me, we will reply to you within one day.
5.Q: Can you make special Design and logo on product?
A: Yes, very easy.
6. Q: What is the shipping port?
A: Tianjin port.

---
