Flexible PVC Layflat Hose Colorful Drainage Hose for Garden Water Supply, Agricultural Irrigation or Heavy Duty Drainage of Liquids

Product Description

Flexible PVC Layflat Hose Colorful Drainage Hose for Garden Water Supply, Agricultural Irrigation or Heavy Duty Drainage of Liquids
Product Description

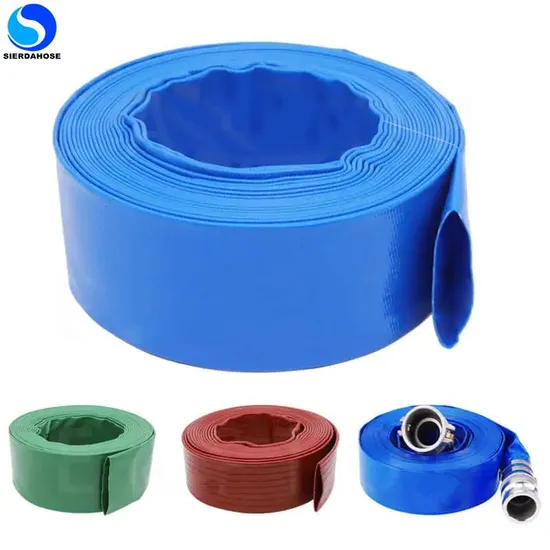

PVC Layflat Hose
Description:
PVC Layflat hose is a tough water discharge hoses made with a PVC cover and reinforced polyester yarn, The high tensile polyester yarn provides great durability and strength in all working situations. It is highly durable while maintaining graet flexibility and best suited for low--medium pressure applications.
Features:
Light weight, Good flexibility.
Corrosion resistant, anti-aging
Easy use & storage
Different colors available
Assemblies or cut lengths available.
Burst pressure 3 times working pressure.
Non-toxic, Non-smell
Application:
PVC layflat hose is designed for ligh and heavy duty applications, the hoses are most commonly used in agricultural equipment where continuous water flow through irrigation systems is required. Additional uses include water pump, pool & spa,construction, mines and marine.Detailed PhotosSTRONG STRUCTURE
Premium PVC tube & cover with high tensile polyester braiding, can work well in light & heavy duty applications. Excellent performance in corrosion,age and abrasion resistance
SUPERIOR ABILITY
The PVC layflat hose is light weight with good flexibility. It's non-smell and non-toxic,very easy to handle and storge in irrigation system or other watering systems
MUTIPILE CHOICES
There are optional diameters and length in terms of size, you can also choose different colors and assemblies. And we offer OEM or 3D design printing on your requests.
WIDE APPLICATION
Commonly used in agricultural equipment where continuous water flow through irrigation systems is required. Other application include water pump, pool & spa,construction, mines and marine.
Product Parameters
Standard duty

Item Code	Inner Diameter		W.P.		B.P.		Length	Weight	Volume
	inch	mm	psi	bar	psi	bar	m/roll	kg/m	m3
SDPLHS19	3/4"	19	58	4	218	15	100	0.14	0.014
SDPLHS25	1"	25	58	4	218	15	100	0.15	0.019
SDPLHS32	1-1/4"	32	58	4	218	15	100	0.17	0.023
SDPLHS38	1-1/2"	38	58	4	218	15	100	0.21	0.026
SDPLHS51	2"	51	58	4	174	12	100	0.23	0.039
SDPLHS64	2.5"	64	58	4	174	12	100	0.32	0.047
SDPLHS76	3"	76	58	4	174	12	100	0.36	0.060
SDPLHS102	4"	102	58	4	174	12	100	0.55	0.083
SDPLHS125	5"	127	58	4	174	12	100	0.75	0.109
SDPLHS153	6"	153	58	4	174	12	100	0.90	0.141
SDPLHS203	8"	203	58	4	174	12	100	1.80	0.193
SDPLHS254	10"	254	58	4	174	12	50	2.60	0.178
SDPLHS305	12"	305	58	4	174	12	50	3.10	0.245

Medium duty

Item Code	Inner Diameter		W.P.		B.P.		Length	Weight	Volume
	inch	mm	psi	bar	psi	bar	m/roll	kg/m	m3
SDPLHM19	3/4"	19	87	6	305	21	100	0.14	0.014
SDPLHM25	1"	25	87	6	305	21	100	0.17	0.019
SDPLHM32	1-1/4"	32	87	6	305	21	100	0.19	0.023
SDPLHM38	1-1/2"	38	87	6	305	21	100	0.24	0.026
SDPLHM40	1-1/2"	40	87	6	261	18	100	0.26	0.026
SDPLHMSl	2"	51	87	6	261	18	100	0.30	0.039
SDPLHM64	2.5"	64	87	6	261	18	100	0.45	0.047
SDPLHM76	3"	76	87	6	261	18	100	0.50	0.060
SDPLHM102	4"	102	87	6	261	18	100	0.90	0.083
SDPLHM125	5"	127	87	6	261	18	100	1.10	0.109
SDPLHM153	6"	153	87	6	261	18	100	1.80	0.141
SDPLHM203	8"	203	87	6	261	18	100	2.80	0.193

Heavy duty

Item Code	Inner Diameter		W.P.		B.P.		Length	Weight	Volume
	inch	mm	psi	bar	psi	bar	m/roll	kg/m	m3
SDPLHH20	3/4"	19	145	10	435	30	50	0.15	0.007
SDPLHH25	1"	25	145	10	435	30	50	0.20	0.010
SDPLHH32	1-1/4"	32	145	10	435	30	50	0.21	0.012
SDPLHH38	1-1/2"	38	145	10	435	30	50	0.29	0.013
SDPLHH40	1-1/2"	40	145	10	435	30	50	0.30	0.013
SDPLHH45	1-3/4"	45	145	10	435	30	50	0.35	0.018
SDPLHHSl-1	2"	51	116	8	348	24	50	0.35	0.020
SDPLHHSl-2	2"	51	145	10	435	30	50	0.42	0.020
SDPLHH64	2-1/2"	64	145	10	435	30	50	0.70	0.024
SDPLHH76-1	3"	76	116	8	348	24	50	0.66	0.030
SDPLHH76-2	3"	76	145	10	435	30	50	0.85	0.030
SDPLHH102-1	4"	102	116	8	348	24	50	1.00	0.042
SDPLHH102-2	4"	102	145	10	435	30	50	1.20	0.042
SDPLHH153	6"	153	116	8	348	24	50	2.20	0.071
SDPLHH203	8"	203	116	8	348	24	50	2.80	0.010

Raw materials
Packaging & ShippingCompany ProfileHEBEi SIERDA RUBBER & PLASTIC PRODUCT CO..LTD was established in 2009, is a rapidly growing enterprise who integrate the production and marketing of high quality PVC hose,Pneumatic hose, Duct hose and related accessories.
After 10 years effort and development, now we have become one of the leading manufacturers and suppliers of of Plastic hose in China. We have been enjoying high reputation in plastic hose market domestically and internationally.
HEBEi SIERDA Main Products Range:
PVC hoses, which include PVC Layflat Hose,PVC Steel Wire Hose,PVC Suction Hose,PVC Spray Hose,PVC Air Hose,PVC Clear Hose, PVC Fiber Hose, PVC Garden Hose etc.Pneumatic hose : PU Hose, PU Coil Hose, PU Braided Hose, Nylon Hose, Nylon coil Hose,etc.Duct Hose which include…..PU Duct Hose, Silicone Coated fiberglass Duct Hose Etc. HEBEi SIERDA MarketsHEBEi SIERDA Markets
HEBEI SIERDA HOSES are exported to the Europe, the U.S.A, Russia,Middle East, South America, Australasia,Africa and more than 30 countries.
HEBEi SIERDA are approved by ISO 9001 and ISO 14001.
Welcome to SIERDAHOSE. With our excellent services and exceptional products, we are looking forward to establishing win-win cooperation with customers all around the world.
