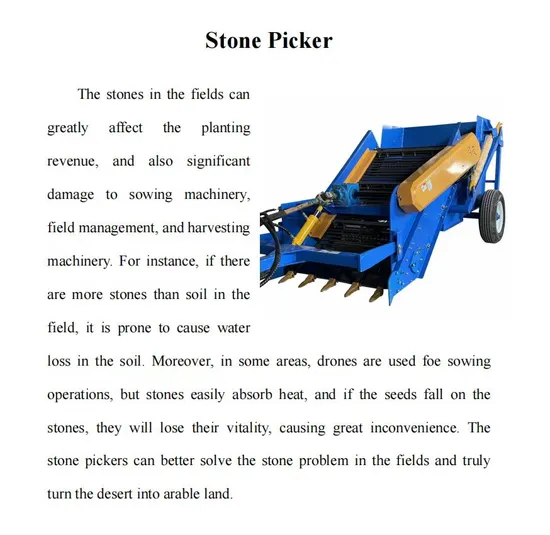

11js-120 Farm Field Small Stone Collecting Machine

Product Description

Product Description
Basic Info.

	11JS-120 PARAMETER LIST
NO.		PROJECT	DESIGN VALUE	NO.	PROJECT	DESIGN VALUE
1		Model	11JS-120	15	Excavation Device Type	Bucket Tooth Blade
2		Structural Style	Trailed	16	Blade Material	Cast Steel Tip
3		Walking Style	Wheeled	17	Excavation Depth Adjustment Range	0-150mm
4		Tire/Track Model	ST225/75R15	18	Depth Limit Mechanism Type	Hydraulic
5		Tire/Track Quantity	Two	19	Pick Minimum Size	32mm
6		Tire/Track Spacing (Center)	1785mm	20	Cleaning And Separation Device Type	Vibration Jane
7		Minimum Ground Clearance	360mm	21	Conveyor Type	Fence Chain Type
8		Working Size (length*width*height)	4950*2050*1750mm	22	Conveyor Chain Gap (center distance)	50.8mm
9		Transport dimensions (length*width*height)	3250*2050*1750mm	23	Chain Stick Material	45 Carbon Steel
10		Overall Weight	1480kg	24	Collection Method	Box Type
11		Working Range	1200mm	25	Collection Box Volume	0.8m³
12		Operation Efficiency	Estimated 0. 14-0.21 hectares per hour	26	Unloading Method	Tilting Back
13		Supporting Power/ Machine Horsepower	≥80hp	27	Discharging Height	1600mm
14		Matched To The Power Output Shaft Speed	540/720r/min		FOB	3800
Note: The values in the specification table are theoretical values, please refer to actual values.

Product Description
Detailed Photos
Certifications
Packaging & Shipping
Detailed PhotosProduct ParametersPackaging & Shipping

Company Profile
Company Profile
Dezhou Hongyou Agricultural Machinery Co., Ltd.
Dezhou Hongyou Agricultural Machinery Co., Ltd. is located in Ningjin County, Shandong Province, which is known as the "Agricultural Machinery City". Established in 2002, the company has 22 years of processing history and experience, and is a high-tech manufacturer focusing on agricultural machinery products for underground root crops.

Our main products include five series of more than 55 varieties, such as potato harvester machines, mulch film recovery machines, field stone picking machines, ridging and mulching machines, and seeding killer machines.

The company has passed the ISO9001-2008 quality system certification. We will always adhere to the business philosophy of "quality first, customer first", use advanced technology and professional products to make modest contributions to the modernization of agriculture. We sincerely invite partners from all over the country to join us in cooperation and jointly promote the modernization of agriculture, create a brilliant future for agricultural machinery. We warmly welcome both new and old.

We have an old factory area and a new factory area under construction for producing and processing machines. There are finished product stacking area, machine processing area and production workshop. Our Advantages
