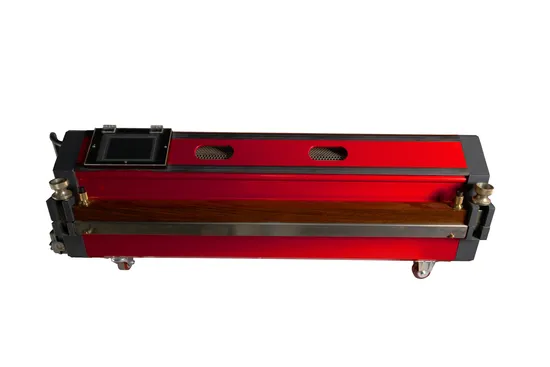

PVC PU Conveyor Belt Air Cooling Belt Splice Press

Product Description

PVC PU conveyor belt Air Cooling Belt Splice Press 1200mm Air cooled press has all componets integrated into the tool,allowing a user to plug it simply into electricity and it's ready for use.
Fast and Portable Splicing,can be bring to anywhere easily. Product Description
Specifications:
•ANTAI ACP series air cooled press,have different models from 300mm to 2100mm.
•Used for PVC/PU/PVK Belt and thermoplastic belt materials etc.
•Portable splice press,light weight and with flight case as standard packing,easily removed to anywhere for on-site joint work.
•Fast Splicing:Heating and cooling time:no more than 12mins.
•All-in-one design:Integrated air cooling system and also air compressor inside.To ensure that belt is quickly cooled down and auto press on,without water pump or additional air compressor.The air compressor made in Germany.
•Reliable and automatic temperature control with time controlling(in one meter,also you can sent by yourself).High quality Euro thermistor.The temperature controller from Eurothern,made in UK.
•Air pressure controller (set the air pressure and display the current pressure),High quality SMC Controller.
Specification list
• 300 mm effective (12")

• 600 mm effective (24")

• 900 mm effective (36")

• 1200 mm effective (48")

• 1500 mm effective (60")

presses function on different voltages
Specification list

Model	300	600	900	1200	1500
Effective length	305mm / 12″	610mm / 24″	914mm / 36″	1219 mm / 48″	1524 mm / 60″
Effective width	120mm / 4.7″	120mm / 4.7″	120mm / 4.7″	120 mm / 4.7″	120 mm / 4.7″
Weight lower part	11.5 kg	18kg	23kg	28.5 kg	32 kg
Weight upper part	12kg	13kg	18kg	25.5 kg	30 kg
Total weight	21kg	30kg	38kg	54 kg	62 kg
Overall height	220mm	225mm	225mm	225mm	225mm
Max. pressure	2 Bar / 28 PSI	2 Bar / 28 PSI	2 Bar / 28 PSI	2 Bar / 28 PSI	2 Bar / 28 PSI
Max. temperature	200 ºC/390 ºF	200 ºC/ 390 ºF	200 ºC/ 390 ºF	200 ºC/ 390 ºF	200 ºC/ 390 ºF
Packaging list(L x W x H)	790x430x420mm	1090x430x420mm	1390x430x420mm	1720*450*430mm	2030*470*410mm
Gross weight	50 kg	72 kg	85kg	104 kg	127 kg

Packaging & Shipping
Company Profile
ANTAI is the leading manufacturer of conveyor belt vulcanizing equipment. ANTAI has been offering unique Sectional Vulcanizing Systems that provide strong, long-lasting splices, for over 27 years in china.
The Unique and Innovative belt splicing system designed to be portable and offer maximum versatility in splicing all types and sizes of conveyor belting. It's intelligent, modular design and vast array of unique operating features, can handle all types of belt designs in every conveyor application.
The ZLJ series belt vulcanizing machine (hereinafter referred to as vulcanizer) is an electrothermal type vulcanizing device used for on-site splicing of conveyor belts. With the advantages of advanced technology, compact structure and convenient usage, it's used for the vulcanized jointing of the belts mixed with canvas, nylon, steel cord, etc., and it's also suitable for the flame retarded, corrosion proof and other special belts. The application area of this kind of vulcanizer is very wide, it can be used in metallurgy, mining, power plant, port and wharf, building material factory, chemical factory and so on.
The Sectional vulcanizer offers equipment, which is portable and easy to set-up and remove from the site. It has accurate control and indication uniform temperature due to the unique element design and uniform pressure over the entire splice area. Components in this model are lightweight and easy to assemble.
FAQ

1. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment.

2. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.

3. Are you able to give installation and commissioning overseas?How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation. Small machine usually takes within 2~3 days. Big production line usually takes about 30 days.

4. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation,quality,integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers.

If you come to our factory, we can show the user around us.

5. How can we go to your side?

We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao liuting airport. We will pick up you at the airport.

---
