Aluminium Foil/Aluminium Strip/Aluminium Sheet for Transformer Foil Winding

US$2.90-3.70 500 kg (MOQ)

Basic Info.

Model NO.
CXTAF-1060
Technique
Slitting
Grade
1000 Series
Temper
O - H112
Surface Treatment
Deburred
Alloy
Non-alloy
Transport Package
Caterlinx
Specification
10-1200mm wide
Trademark
CATERLINX
Production Capacity
2000tons Per Month

Product Description

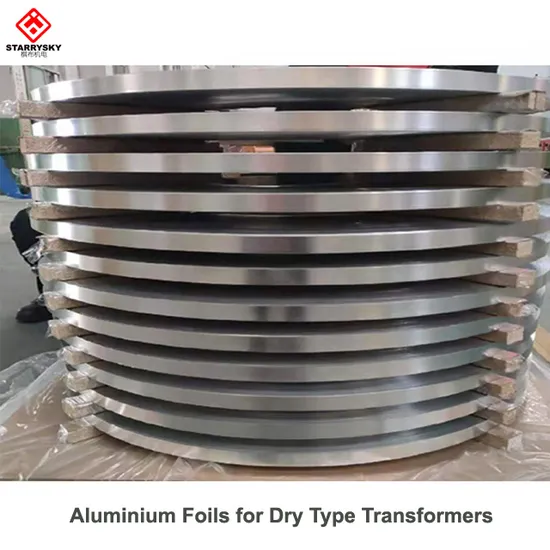

Product Description Aluminium Foils for Transformer Windings, 1060-O
Alloy & Temper:
1060-O
Conductivity:
IACS% 61 min.
Thickness:
0.2mm-4.0mm
Width:
20mm - 2000mm
Inner Diameter:
300mm, 400mm, 500mm
Outer Diameter:
850mm -1000mm
Height of Burrs:
0.02mm Max. Suitable for Transformer Foil Winding.
Surface Quality:
Flat, Smooth and no scratches or rolling marks
Packaging:
With Interleaving Protective Paper; Eye to Sky or Eye to Wall packaging;
Application:
Oil Immersed Distribution Transformers, Dry Type Transformers
Detailed Photos
