US$4,000.00-4,500.00
|
1 unit
(MOQ)
|
Basic Info.
Type
Polyurethane Foam Machine
Computerized
Computerized
Certification
CE, ISO9001:2008, QS, GMP
Transport Package
in Wooden Cases
Specification
100*85*130mm
Production Capacity
50000pieces/Year
Product Description

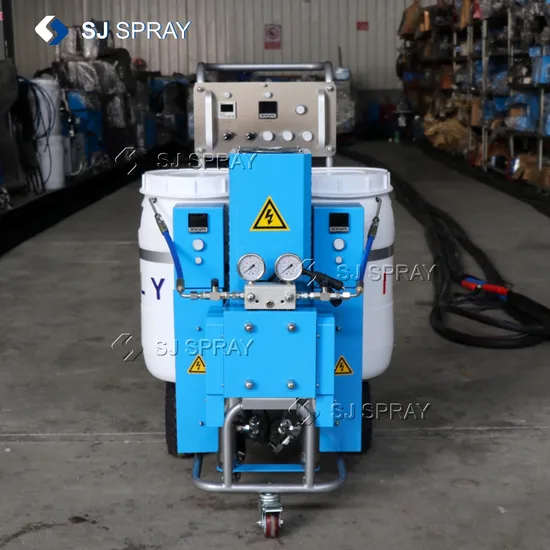

Electric plyurea/polyurethane spray machine FD-E10HP
Product Description
1.The FD-E10hp provides the high pressure power and performance needed to spray polyurea coatings. It's lightweight and portable - runs on residential power, so you don't need to invest in a generator.
2.The machine has a self-circulating system and the material heats up quickly so you can get up and running faster.
3.Entry-level system for pure and hybrid polyurea coatings.Ideal for small to medium projects such as patios, swimming pools, balconies, water tanks, truck bed liners, secondary protection and waterproofing.
4.The machine only needs to be matched with an air compressor with a displacement of 0.1m³/min.
5.Spray gun, heated hose can be used with G/R/A/C/O.
6.Digital heating control
allows you to enter the exact temperature you need
7.Portable
Its through standard doorways
Plugs into a standard 120V or 230V outlet
Sturdy wheels for extreme worksites.
No generator, motor required
8.Motor
Provides 50% more power than FD-E10
Provides improved spray performance and reduced pressure drop,increase heat.
9.Heating system
Directs unused power from the motor circuit to the attached heater rods.
Additional heater power allows material to reach desired temperature faster in recirculation mode.
Product Parameters
| Project | FD-E10HP |
| Material application | Polyurethane/polyurea |
| Maximun working pressure | 21Mpa |
| Data ratio of raw materials | 1: 1 (fixed) |
| Raw material viscosity range | 200-1000CPS (at working temperature) |
| Working pressure | 17MPa (170 bar) |
| Maximum Fluid Temperature | 88 ° C (190 ° F) |
| 0utput | 2-12kg/min |
| Gun Type | Spray/Injecting |
| Total power | 10000W |
| Voltage | 110V/230V 1-ph / 3-phs 380V/400V 3-ph |
| Max heating hose length | 98.4 feet (30m) 45 meters to be customized |
| Barrel cubage | 40L (each one) |
| Packing size | 705*879*1126mm |
| Gross weight | 220KGS |
| Net weight | 180KGS |
Standard configurations
1.Slef-cleaning spray gun 1 unit 2.transfer pump 2 unit 3.Heated hoses 15 meters
Packaging & Shipping
Export fumigation-free wooden box packaging, sea and air transport more robust and reliable.
Exhibition
For more than ten years since its establishment, it has participated in dozens of foreign exhibitions and has very stable partners all over the world.
Certifications
CE certification, rich export experience
>>
