HDPE/LDPE/LLDPE/PLA High Speed ABA Co-Extrusion Film Blowing Machine

Product Description

Product Description

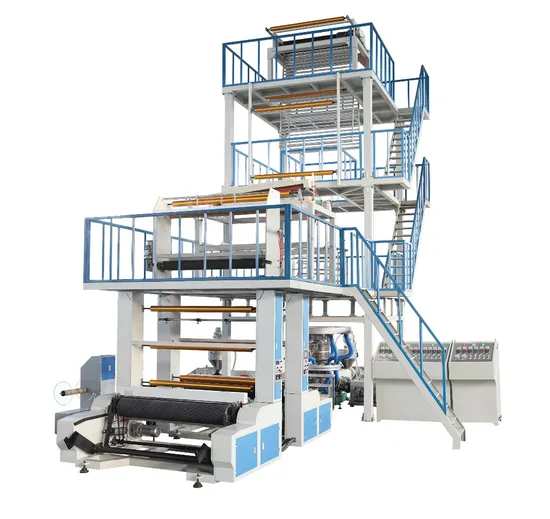

High speed co-extrusion ABA film blowing machine
This co-extrusion PE blown film machine is composed in two extruders and auxiliary parts, the die head and wind-cooling can rotate continuously. It can be used for blowing with HDPE, LDPE,LLDPE and metallocene polyethylene, etc. through the three layers extrusion die head to form two-layer complex composite film. With greatly improving the physical properties of the films and an increase of strength, so that the films featured in good obstruct properties and air tightness.
This kind's film is widely used in the liquid film, pearl film, composite-based film, heat shrinkable film, tire separation membrane, anti-aging multi-functional film, anti-jamming membrane, impermeable film, stretch film, cable film, etc.
Product Parameters

Model	XY-ABA600	XY-ABA800	XY-ABA1000	XY-ABA1200
Raw material	HDPE / LDPE / LLDPE / EVA / CaCo3 / PBAT / PLA
Film width	100-600mm	200-800mm	300-1000mm	400-1200mm
Roller width	700mm	900mm	1100mm	1300mm
Film thichness	0.02-0.20mm	0.02-0.20mm	0.02-0.20mm	0.02-0.20mm
Max. output	50-70kg/h	50-80kg/h	60-100kg/h	70-120kg/h
Screw diameter	A: 45mm	A: 50mm	A: 55mm	A: 60mm
	B: 50mm	B: 55mm	B: 60mm	B: 65mm
Screw L/D	30:1	30:1	30:1	30:1
Driving motor	11+15kw	15+18.5kw	18.5+22kw	22+30kw
Gearbox	133+146	146+173	173+173	173+180
Die size	HD φ60	HD φ80	HD φ120	HD φ150
	LD φ100	LD φ120	LD φ200	LD φ200
Weight	3200kg	3800kg	4500kg	5000kg
Machine size	4x2.6x5m	4.5x3x5.5m	5x3.4x6m	5.8x3.8x6.5m

Optional Equipment:
1) Auto Loader
2) Corona
3) Special Specification Die Head
4) Fast Changer Filter
5) Automatic Rewinder
6) g/m weight controller
Certifications
Packaging & Shipping
Company Profile
FAQ
1. Are you factory or trading company ?We are factory specialized in plastic machine for many years, also we have the right to export goods by ourselves.2. Where is your factory? How can i visit your company?Our factory is located in Ruian city,zhejiang province, China. Its about 40 minutes from shanghai by plane(4 hours by train). We will pick you up on airport or station.
Welcome to visit our factory3. How long is your delivery time?Normally our delivery time is 15-30 days. If you need it ugently, we can make it about7 days4. What are your terms of payment?We accept 30% deposit, balance before shipment. And Irrevocable L/C at sight. 5. What package do you use for the product?Be Coated with anti-corrosion oil, and covered with plastic film, wooden box package need extra cost. 6. Does your factory provide installation service?Our engineer can go to customer factory to installation. Customer should prepare materials used to testing the machine in advance and should be responsible for the cost of supplier's technician, including round air tickets, visa cost, accommodation and salary 100USD/Day per person since the day start out until the day arriving at factory.7. What's your warranty policy?12 month guarantee and whole life maintance.
8. What is your company after sale service?We would express the free replacement parts as soon as possible.

---
