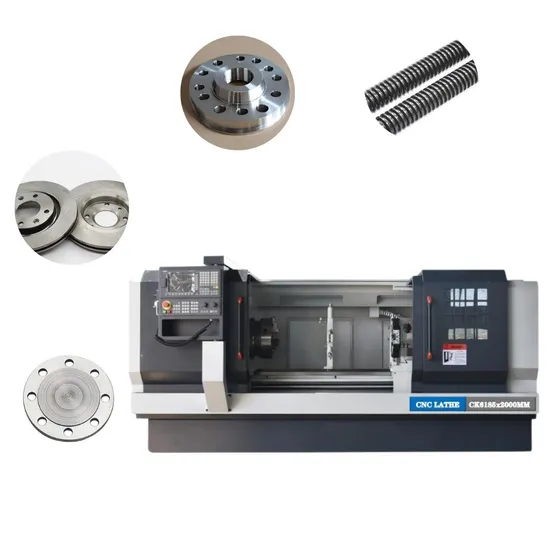

Heavy Duty Model for Large Workpiece Ck6185 Flat Bed CNC Lathe

Product Description

Product Feature:
1.High precision CNC flat bed lathe with hard rail, hardness around HRC50.
2.Heavy duty model suitable for big large workpiece.
3.Spindle with high precision cylindrical roller bearings, the rigidity and precision of heavy cutting.
4.Siemens,Fanus, Syntec, Fagor controller as optional.
5.Good quality grinding grade ball screw ensure positioning accuracy is more stable.
6.One-piece cast ensure higher rigidity of the whole machine.

Machine Type	CK6185
Distance between centers	1000mm/1500mm/2000mm
Max swing over bed	Φ850mm
Max swing over cross slide	Φ480mm
Width of bed	570mm
Spindle speed range	25-850rpm, 3-gear spindle speed
Spindle bore	Φ105mm
Spindle nose	C11
Taper of spindle bore	Φ120mm 1:20
Chuck diameter	Φ320mm
X axis travel	450mm
Z axis travel	1000mm/1500mm/2000mm
X/Z axis Rapid traverse	4/6 m/min
Turret Type	Electrical turret
Tool station number	4
Tool holder	32x32mm
External diameter	Φ100mm
Max travel	250mm
Taper of bore	MT6
Spindle motor power	11KW
Coolant pump power	250W
Overall dimension(LxWxH)	3500/4000/4500 x 2000 x 2000mm
Packing dimension(LxWxH)	3700/4200/4700 x 2200 x 2200mm
Net/Gross weight	4100/4400kg 4700/5000kg 5400/5800kg

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
